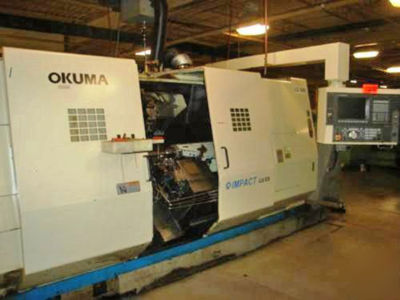

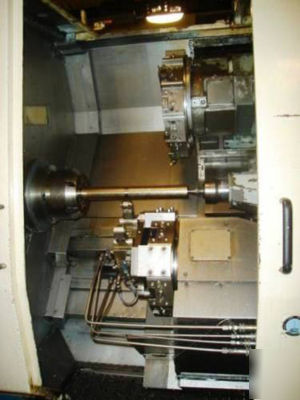

25.5" swing okuma impact 4-axis cnc turning center
MDL. LU-25, S/N 1009-0399, MFG 1999
SWING OVER CARRIAGE....................................................... 16.5"
SWING OVER CROSS SLIDE.................................................. 12.9"
DISTANCE BETWEEN CENTERS........................................... 25.6"
X-AXIS TRAVEL: UPPER TURRET.......................................... 8.2" + 3.5"
LOWER TURRET........................................................... 5.12" + 2.5"
Z-AXIS TRAVEL: UPPER TURRET.......................................... 28.5"
LOWER TURRET........................................................... 25.9"
BAR CAPACITY........................................................................ 3.15"
SPINDLE SPEED RANGE........................................................ 65-3500 RPM
SPINDLE HOLE DIAMETER..................................................... 3.94"
PRICE: ON SITE, (PHILADELPHIA, PA) .. ... . $59,500.00
