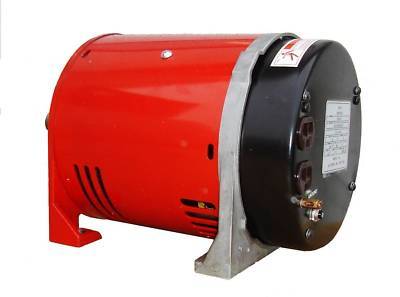

Generator - belt drive driven - 2,400 watts - 120V
2,400 Watts (2.4 kW) - 120V - Brushless - Heavy Duty Industrial Designed - Two Bearings - Bi-Directional (Generates in Clockwise or Counter-clockwise)
* Heavy Duty Industrial Designed Winco 2,400 Watt - 120V - Brushless Belt Driven Generator
* Winco's heavy duty industrial designed, rugged, two bearing generator come with double baked armatures, epoxy baked rotors, oversized diodes, cast iron drive-side end bracket and double sealed permanent bearings
* Minimum Hp Required for Operation: 5 Hp
* This unit is capable of starting a 3/4 Hp motor
* Motor Starting Capability: 3/4 Hp
* Circuit Breakers: 1 Each - 20 Amp
* Receptacles - 120V: 2 Each - 15 Amp
* Overall Dimensions: 14.25" L x 8.5" W x 8.94" H
