Barrett oil extractor model 1101-se, 1993

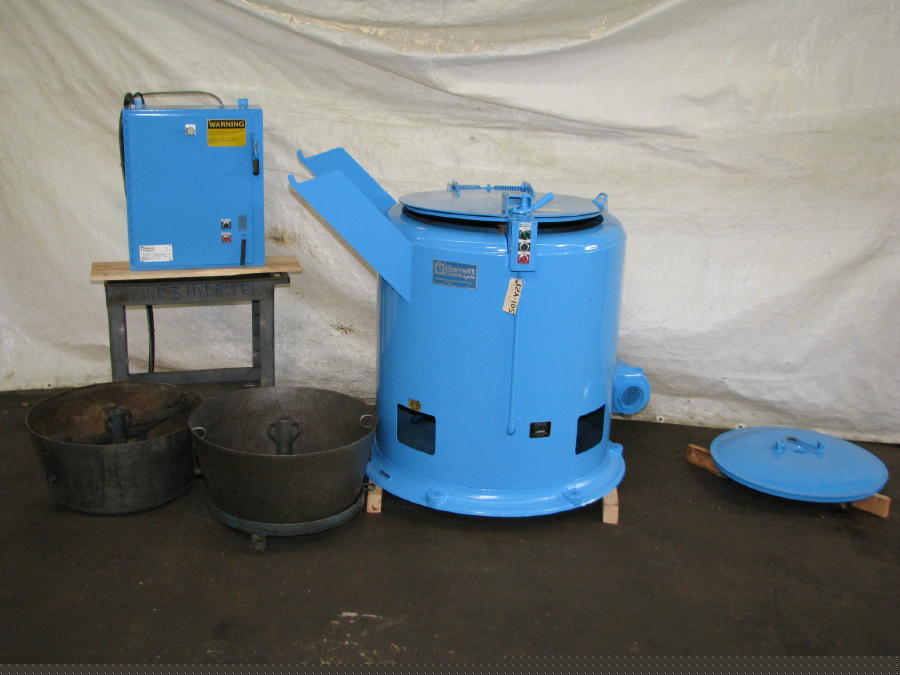

Barrett Oil Extractor Model 1101-SE, 1993
This Barrett SE model oil extractor is for fine
chips and coarser grade sludge.
Pan Size: 30" Diameter x 14" Deep
Pan Capacity, Cu. Ft.: 4.5
Maximum Allowable Load: 425 Lbs.
Maximum Loads Per Hour: 15
Hourly Production Rate, Cu. Ft.: 68
Number of 55-Gallon Barrels/ Hour: 9
Overall Machine Dimensions: 49" Dia. x 48" High
Barrett Electronic Interlock Safety Lid
(2) Spindle Post Type Pans
10 HP Motor 460/3/60 Electrics
Approximate Net Weight: 2,660 Lbs.
