6 allen bradley flex i/o 24VDC 1794-OB8 & 1794-TB3

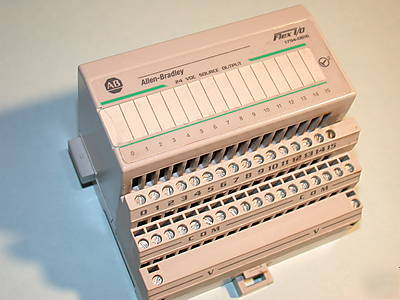

6 ALLEN BRADLEY FLEX I/O 24VDC 1794-OB8 & 1794-TB3
Number of Outputs - 8 (1 group of 8), non-isolated, sourcing
ON-State Voltage Range - 10V dc minimum - 24V dc nominal; 31.2V dc maximum
Supply voltage - 24V dc nominal
Output Current Rating - 500 mA per channel, 4 A per module
The FLEX I/O module plugs into the terminal base provided, connecting to the I/O bus and field devices. Since there is no direct wiring to the I/O module, you can remove and insert modules under power, enabling you to change modules without disturbing field wiring, other I/O modules, or system power. This eliminates costly downtime and the inefficiencies of restarting a system.
http:// /en/epub/catalogs/12762/2181376/104830/2416241/1168992/tab6.html
http:// /allen-bradley/racatcd/b112/b112pubs/179421/dc.pdf
I will fully guarantee these expensive modules- new cost $500.
