Yokogawa 251344PDPD7JAB kvp panel meter rtg 0-85 i/v
Yokogawa 251344PDPD7JAB kVp Panel Meter RTG 0-85 I/V
Horizon Line panel meters can be mounted either behind or in front of the panel. Behind-panel mounting is easy. . . just remove snap-off mask and mount. No special mounting hardware or bezel is required. This design feature improves panel appearance . . . saves time and money. When illuminated scales are required, simply position light source as shown, or in any suitable position along the edge of the instrument.
Clean, Readable Case Design Provides Extra Safety: YOKOGAWAs brand New Big Look and Horizon Line panel meters are designed to provide attractive styling, quick, sure readability for any application . . . and a built in safety feature to help you meet national safety requirements. If you must remove the acrylic cover, you have to remove the instrument itself from the panel in order to reach the special safety screws holding on the cover. Removing the meter prevents shock hazard. This safety feature is standard on all New Big Look and Horizon Line meters.
Jewel and pivot meter construction is designed so the coil and pointer are supported by polished steel pivots at each end which fit into jewel bearings. Pivot and jewel meters are recommended for highvibration environments because of the mechanisms inherent stability and strength. Accuracy and repeatability are almost equal to the taut-bands, and good performance from the pivot and jewel construction is the reason for its long popularity. Dont specify pivot and jewel meters for applications that involve high shock, but do take advantage of this meters ability to withstand vibration.
Standard calibration accuracy is 2% of full scale.
Specifications: The label on the meter reads:AC Volt I/VRTG 0-85 V ACSpecialKVP

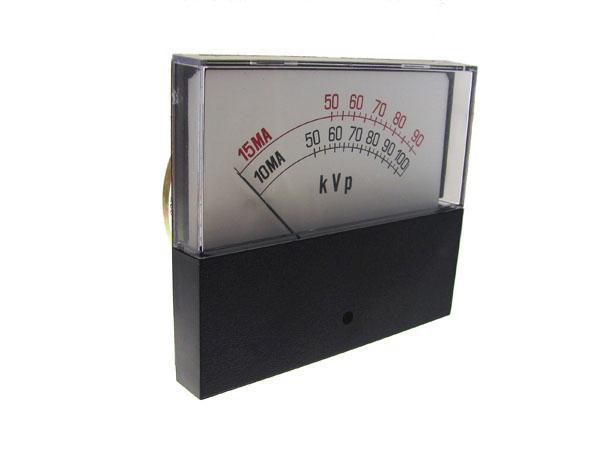

The meter itself has 2 rows of marks labeled:15MA: Marked from 50 to 9010MA: Marked from 50 to 100
