> Resistor wire wound 150 r ohms ER17 14 watt 10@ £0.10P

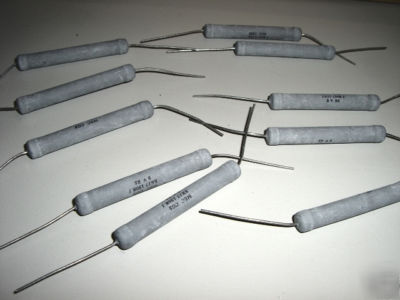

Resistor wire wound 150 r ohms ER17 14 watt 10@ £0.10P
10 pcs High Temperature CGS ER17 150R J Resistor
The ER17 Originally made by CGS now owned by Tyco (range still called ER17 etc)
* RESISTOR, Silicon coated, 150R ohms 5%
* Voltage Rating maximum 750V
* Temperature Coefficient: 60ppm/ C typical
* Resistor Element Type:Wirewound Silicon Coated
* External Length / Height:53.5mm
* Temperature Coeff. +:60ppm/ C
* Temperature Coeff. -:60ppm/ C
* Voltage Rating Typical 750V
* Full Power Rating Temperature:40 C
* Max Operating Temperature:200 C
* Operating Temperature Range:-55 C to +200 C
* Power Rating 14Watt @40c 12Watt @70c
