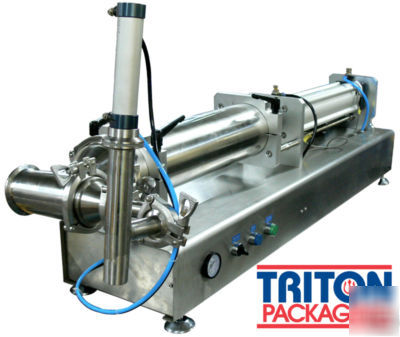

Liquid filling machine volumetric filler fp-5000
Piston Fillers measure and dispense free flowing products - such as thin and/or moderately dense liquids - onto a container. Each machine is equipped with one or more volumetric pistons. Each fill/release cycle consists of an intake stroke, where the product is withdrawn from the container or hopper and taken into the product cylinder. The down stroke commences as soon as the product cylinder has reached its predetermined fill level. The piston pushes the product out of the cylinder and into the container.
* Filling Range: 16 - 170 oz. (500-5000 ml)
* Approximate Speed: 8-14 pcs/min (depending on operator speed, product density, draw length, a fill speed, among others)
* Suitable to fill low to high-density liquids (0 - 3,000 cp)
* Semi Auto/Continuous Operation Selector Switch
* Air Intake Pressure Adjustment
* Piston Volume Adjust with Numeric Display
* Voltage: 110v / 50-60 Hz / 1Ph
* Flammable or explosive products should not be dispensed with this unit
Other Options (not included with the machine - inquire for availability)
* Double Jacket Heated Hoppers (For Hot Products)
* Agitating Auger (For Products that need mixing)

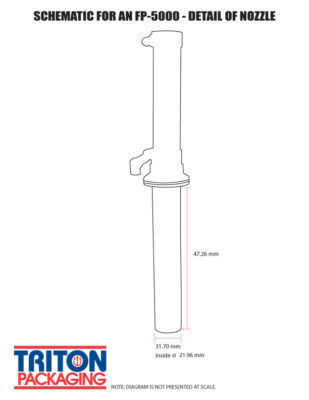

* Custom Nozzles (To direct flow and/or to prevent foaming, splashing, excessive aeration, etc.)
* Various O-ring Materials (Teflon, Silicon, Floroelastomers, Encapsulated Silicon, etc.)
* Photo Eye for Automatic Cycle Actuation
* Boxed Machine Size: 84 inches (1676mm) x 24 inches (1016mm) x 26 inches (610mm)
* Boxed Machine Weight: 240 lbs (110 kgs)
