1W pc computer stereo fm transmitter pci max 3000+ card

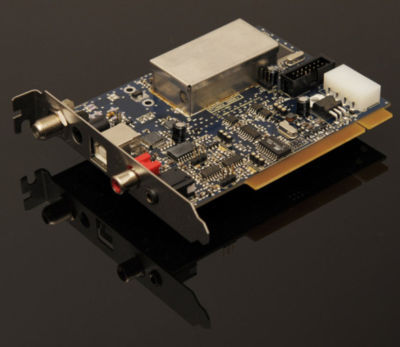

PCI MAX 3000+ PC sTeReO FM transmitter card 1W version
UP for sale is a brand new, assembled PCB, Phase locked loop (PLL) PCI computer card sTeReO FM transmitter for the FM broadcast band (87.5-108MHz) one Watt version, direct from manufacturer, PCS electronics in Europe.
See big pictures: Picture 1, Picture 2, Picture 3.
http:// /3000-stereo-transmitter-card-p-1664.html
Now with QSonic PLL/VCO and on-board PC sound card
PCIMAX3000+ is a computer card that will change the way you either do radio or listen to your MP3's or other audio via PC. It will effectively change your PC into a powerful stereo FM radio station, it is a small digital FM transmitter in a form of a PC card. You will be able to play your audio files (CD, wav, MP3, real audio etc.) from your PC through radio waves directly to your household radio receiver in the next room, in the living room, across your yard, in whole block of flats....or for the entire village/small city. You need just an ordinary radio receiver to receive your signal. The included software lets you set the frequency and the output power. You can either service your living room, garden or an entire community. Get rid of those pesky cables!
PCI MAX was featured in the Playboy magazine.
You can find the manual for this (and other products) here.
It can never be easier that this. Install this card into your PC as you would any other PC card. Install software and you're ready to broadcast! Software gives you full control over frequency and power.
Coupled with MP3 player and scheduling plug-ins this becomes a fully automated radio station! Perfect for fully automated guided tours, small scale advertising, wireless link from your PC to your stereo in the living room, wireless headsets for translated/interpreted lectures or even a small community radio station...
You are only limited by your imagination!
What is new since PCI MAX 2007?
- PCIMAX3000+ is a major re-design of PCIMAX3000+
- PCIMAX3000+ comes with the new QSonic VCO/PLL system, giving perfect audio response flatness and good bass response
- PCIMAX3000+ features built-in PC sound card. This allows direct digital audio playback for low noise high quality transmission.
- It is still possible to drive audio from analog source as well (3.5" phones plug).
- Stronger and much more robust RF output stage for more RF power (1W is possible).
- Much better output LPF filter (7-element elliptical).
- RDS daughter board from model 2007+ still compatible.
- Number of small improvements for better sound, stereo separation and increased reliability.
- External power supply no longer required for full output power.
- PCIMAX3000+ can be used outside of the PC, simply connect to PC via USB cable. External mains power supply is used in this configuration.
- A small magnet-base antenna is now included with the card along with about 2m of coaxial cable
- And yes, we have a new driver
- Frequency band: 87.5 (86) -108MHz FM BAND, 50KHz steps (76-108 possible for Japan)
- Stereo mode with excellent stereo separation
- Stereo 3.5 phones socket audio input
- RDS functionality with optional RDS daughter board
- When used inside PC accepts DC power from 3.5" hard disk power plug
- Frequency, mode and RF output power adjustment with a click of a mouse (Windows) or with LCD module
- RF output power: up to about 4W for the 3W model or 1W for the 1W model
Consider one of the better antennas from our website or any of the ones listed under accessories (do check those out).
Difference between models of PCI MAX 2007+:
The only difference between different models is output power. Cards typically output up to and over 3000mW. Operation at highest power level requires a case fan blowing onto the output transistor heatsink (from the side). Failure to use such a fan prevents the unit to reach full power as the temp. protection starts to reduce the power. Such a fan is recommended for all versions starting at 1W and going up.
A number of accesories is available for these cards, making it possible to:
- a selection of various antennas for best range
- amplifiers to increase your range
- accesories for stand alone operation without the PC, cases, LCD displays, power supplies
- Y audio adapters, F to BNC RF adapters and other small items
You can check-out the accesories for PCI MAX card here.
Check this page for more information. Basically it displays station name and sometimes song name (if supported by transmitter) and similar information on a compatible radio receiver. Very popular in Europe, less so in the US. To enable RDS functionality you need to purchase and install RDS daughter board. It plugs into a socket on the PCI MAX 3000+ board.
What kind of antenna should I use?
A small convenient antenna is provided free of charge. This will work fine for your flat or office and may even cover a small property. You can even use this small antenna with any version of PCI max, even the 3W, but set it to low output power. To really crank up the power and range you need a decent antenna, such as the GP type listed below on this page.
PCI MAX comes with one phones 3.5 stereo socket, used for audio input. You may want to split this audio input and send it as well to the speakers. There is a good chance that this item will come handy so it makes sense to invest those few euros/dollars.
Standard antenna output on the PCI MAX board is F female connector. You may want to change this to BNC. Our F to BNC convertor does this in a space efficient, cheap and elegant way without any unnecessary cabling. May come handy.
