0619 digital multimeter

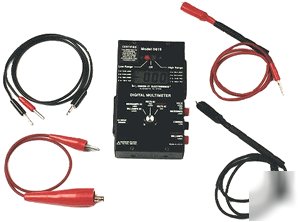

The Check-It 0619 is a Full Range Multimeter. Great for the service engineer or the field serviceman with simple to use, clearly marked ranges, and instructional label for those special ranges used in flame rectification work. The Multimeter is a sensitive digital instrument with six ranges cover all AC/DC volts, and DC current applications. The instrument contains protective circuitry to prevent burnout should the power line voltage be connected on any range. A low battery warning is displayed when the battery requires replacement. A powerful tool for the service engineer or the field serviceman.
* Has all the ranges - Great for testing burner controls, flame safety controls, and intermittent ignition systems
* Measures AC/DC volts and DC microamps
* Measure currents to 0.01 microamps
* Equipped with protection circuitry to prevent burnout should the power line voltage be connected on any range
* Conveniently packaged for all field service use
* High contrast LCD readout - visible in direct sunlight
* Battery life up to 1000 hours
* Operates on one easily replaceable 9V battery
* Belt clip provided for easy carrying
* Strong magnets hold on any steel surface
* Ruggedly built for years of trouble free service
* Made in the United States of America
-20 C to 60 C at 40% relative humidity
One 9V battery, Approximately 1000 hours life
(including battery) Approximately 28 ounces
0.5" high, 3-1/2 liquid crystal (LCD)
Drop-proof black molded case
The instrument is protected against line voltages on any function or range. MA & Continuity range protected with Amp fuse.
