New surgical microscope for ent/dentistry/ophth, ce app
NEW SURGICAL ENT/DENTISTRY/OPHTH MICROSCOPE

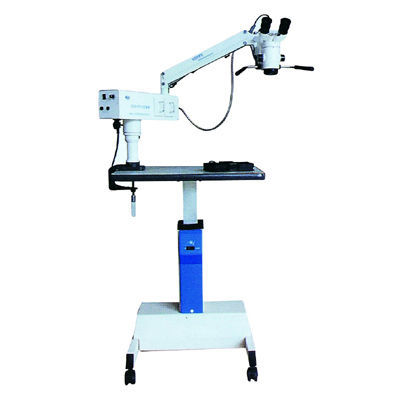

YZ-20P5 Table Type Operation Microscope
This is an excellent microscope for performing a variety of precision surgical procedures at a fraction of the cost of the other well known brands(Zeiss microscope). It can easily be mounted to a wall or if you desire mobility you can attach it to a power table(see above). It can be used for all types of ENT(Ear, Nose, Throat) and Ocular(Lid, Corneal, Cataract, etc.) surgical procedures. Quality at a price that is affordable.
1. Magnification is adjustable to best suit different types of operations.
2.Coaxial illumination offers the best image.
3.Foot control for automatic focus, with a maximum focusing range of 30mm.
4.Built-in spare bulb makes bulb changing faster.
5.The microscope is portable and the height can be adjusted. The total weight is only 33kg/70 lbs.
Focus of objective lens .F200(175, 250, 300, 350, 400)mm
Magnification of Eyepiece 12.5X/18B
Visual Angle of Eyepiece ..45 , 90
Magnification ..5.3X, 8X, 12X
Diameter of visual field 38, 25, 17(mm)
Illumination 6 +0 coaxial illumination
Light Source 12V/100W Halogen Lamp
Illumination Control ..continuously adjustable
Lux on objective plane .30,000Lx
Range and Speed of Focusing .30mm, 2mm/sec
Optional table/hanging fixation
Lengthened column, lengthened arm
Dentistry YZ20P5 operation microscope
Standardized column, standardized arm
Ophthalmology operation microscope
60+00 coaxial illumination ensuring the best red spectrum reflection
**Please note which type you're purchasing - Ophthalmology, ENT or Dentistry.**
18 month product warranty (Most companies are 1 year or less)
We use many of these items in our large ophthalmic practice in NJ.
***PLEASE NOTE THIS VERY IMPORTANT INFORMATION: WE DO NOT JUST SELL OUR EQUIPMENT, WE ALSO SERVICE ALL OUR EQUIPMENT IN THE UNITED STATES.***
