> To-218/to-3P transistor, insulating kit...lot of 20
To-218/to-3P transistor, insulating kit...lot of 20

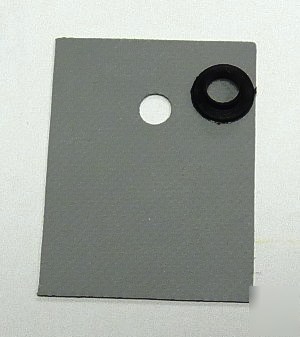

Transistor Insulating Kit to accomodate a single TO-218/TO-3P package consists of:
Silicon rubber insulating washer (Size: 25mm x 19mm, Fixing hole dia 3.6mm), Reinforced with glass fiber. Eliminate the need for heatsink compound.
MATERIAL THICKNESS: 0.3mm, THERMAL CONDUCTIVITY: 1.1W/m-K,
BREAKDOWN VOLTAGE: 4000V, TEMP. RANGE: -40 C to +200 C,
Flame retardant to UL94V-0, UL file No: E153203,
Also included is a 5.4mm diameter insulating bush,
