Power innovation lavaline LAVCON48-230 complete set-up

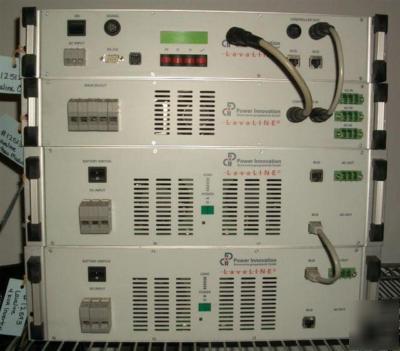

Power Innovation Lavaline Series LAVCON48-230 Controller Box, Bypass Module & 3 4 KVA Inverters (Complete Set-Up)

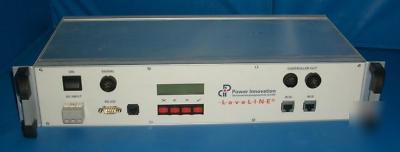

- Controller Box, model LAVCON48-230
Up to 12 inverters connectable, Mixed inverter output power detection, Storage of up to 256 system events, i.e. alarms,
Alarm report auto-sent via optional modem, Configurable via buttons or terminal program, Monitoring of DC input and mains voltage,
Battery buffered real time system clock, LCD dot matrix display 2 x 16, Input power: 230-vac/50 Hz (AC) / 48/60, 110, 220-vdc (DC)

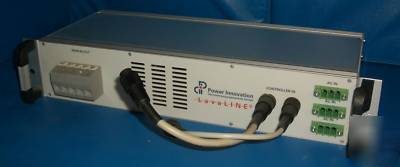

- Bypass Module, model LAVPASSO50SF-01
With the bypass the system can be operated in either On-Line mode (load is supplied by inverters) or in Off-Line mode (load is supplied by
Bypass module is built as a semiconductor switch with active electronic control circuitry and two thyristor modules
Equipped with over temperature and fan failure detection

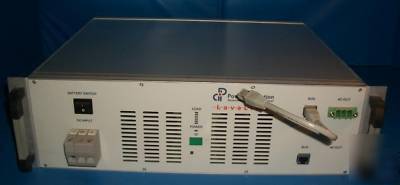

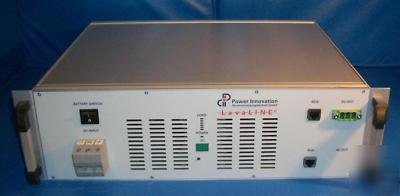

- Three (3) 4 KVA Inverters, model LAV403OOSF-01 (one inverter not shown in photos)
Efficiency > 88%, Up to 12 parallel inverter per external controller, High-frequent switching, low output impedance and Robust IGBT-end-stage
All modules are 19-inch plug-in case/housing
