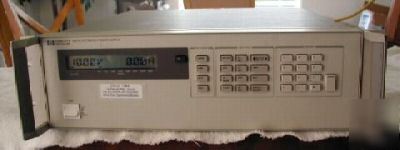

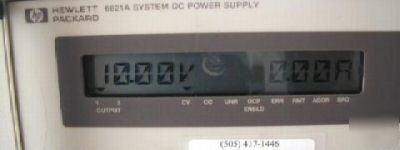

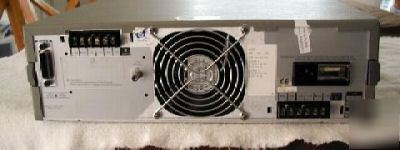

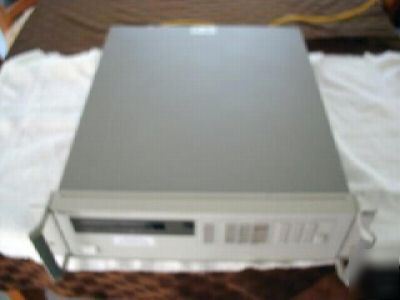

Hp - agailent 6621A 80 watts system dc power supply
The HP 6621A is a dual-output, GPIB system power supply. It has linear low noise power supply outputs combined with a built in GPIB interface. Simple programming commands ease access to all features and capabilities. Dual ranging outputs provide greater flexibility in available voltage and current.
SPECS: *** DC Output(80W): 0-7V, 0-10A & 0-20V, 0-4A *** GPIB programming of voltage and current *** Measured voltage and current readback over the GPIB *** Two outputs can be connected in parallel or in series *** Automatic selection of operating voltage and current range *** Programmable over-voltage and over-current protection *** Self-test occurs at power-on from an GPIB command *** 10 store-recall states.
