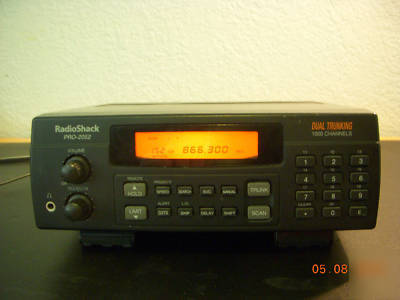

Radio shack pro-2052 1000 ch. police/fire/ems scanner
I will gladly leave the programmed frequencies intact for your use, although Im not sure how many will be a common frequency. However, when I go from Northern Cali into Nevada and Oregon, even up to Washington, Ill typically get some manner of Police/Fire/Medical chatter on some of the channels.
Range 29-54 108-174 180-512 806-956
Search skip 50 frequencies
Trunking Motorola & EDACS
Sensitivity As spec'd in manual:
29-54: 0.5 V
108-137: 1.5 V
137-174: 0.5 V
180-216: 3.0 V
216-225: 0.5 V
225-400: 1.5 V
400-512: 0.4 V
806-956: 1.0 V
1240-1300: 2.0 V
Selectivity -6dB at 10 kHz
-50dB at 15kHz
IFs As spec'd in manual:
29-311 MHz = 380.605-380.7 MHz
311-512 MHz = 254.3125-254.4 MHz
806-956 MHz = 380.7-380.7875 MHz
1240-1300 MHz = 380.7-380.7875 MHz
180-216 MHz = 10.7 MHz
All others = 10.85 MHz
IF Rejection 80 dB @ 162.4 MHz
Scan 50 channels/second
Search 100/300 steps/second
Current 240 mA (squelched)
440 mA (full output)
Size 8.1"(W) x 2.75"(H) x 7.7"(D)

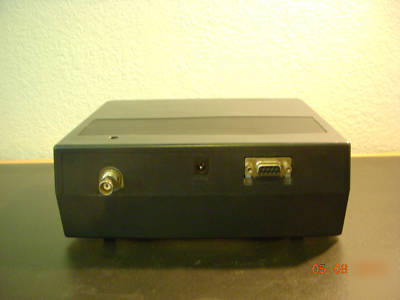

Interfaces BNC, DC, speaker, RS-232
Accessories Antenna, AC adapter
Features SAME Wx w/FIPS, service search,
data skip, duplicate channel alert
***THIS UNIT DOES NOT COME WITH AN ANTENNA***
*** THIS UNIT DOES NOT COME WITH A SERIAL CABLE***
