New tilt and rotation platform port model: 36

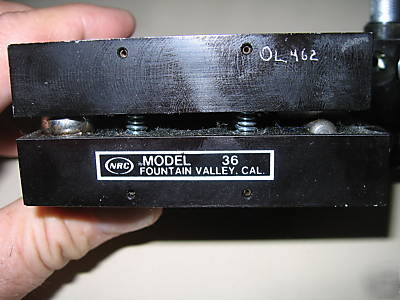

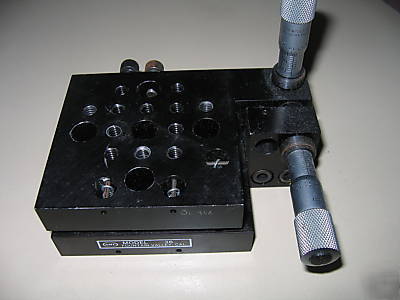

Model: 36 | Tilt and Rotation Platform, -4.3 to +7 Tilt, 2.5 Rotation, SM-13 Micrometers
The Model 36 multi-axis tilt platform provides tilt and rotation adjustments for aligning optical components. It is kinematic, with hardened and polished steel ball pivots and spring-preloaded spherical-tipped adjustments acting on hardened steel seats. This stage has an elevation tilt adjustment and a rotation adjustment that rotates the mounting platform about the kinematic pivot point ideal for use as a pointer. With components mounted on the same face as the micrometers, the rotation provides an azimuth adjustment; components mounted on the opposite side are rotated in-plane.
