Hp agilent 83540A sweeper plug-in

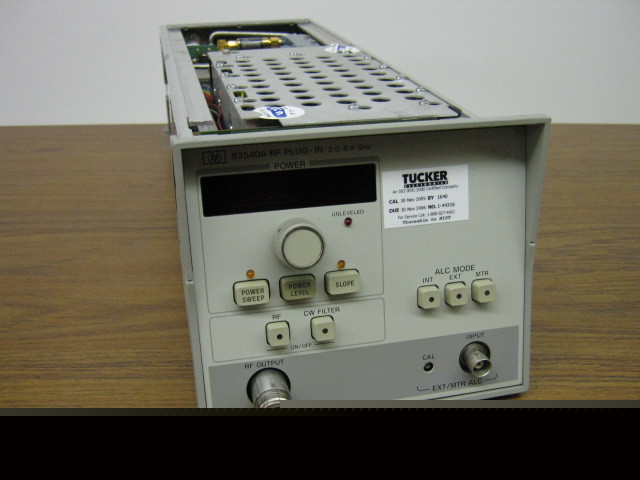

HP Agilent 83540A SWEEPER PLUG-IN
The 83540A RF Plug-In has a frequency range of 2 to 8.4GHz. It is designed for use with the 8350 series Signal Source. High power, high performance, straddle band frequency coverage. The output power is leveled at a minimum of 16 dBm from the 83540A with variations less than 1 dB.
* Frequency 2 GHz to 8.4 GHz
* Accuracy, typical 3.5 MHz
* Maximum leveled power (25 C 5 C) >40mW
* Power Sweep (2.0-8.4 Ghz): 10 ms
* RF output connector: type N female
The 83540A is compatible with the:
HP 8755 Scalar Network Analyzer
HP 8756A Scalar Network Analyzer
HP 8757A Scalar Network Analyzer
HP 8709A Phase-lock Synchoronizer
HP 5344S Source Synchronizer
