Buehler phoenix 4000 metallurgical polisher lap grind

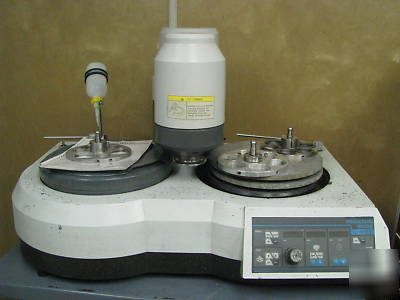

Buehler Pheonix 4000 Metallurgical Polisher Lap Grind
Grinder/polisher base with pneumatic/electrically-driven head
Individual force mode, up to 6 samples; central force mode, up to 10 samples per holder, depending on the holder
1 to 2 (25mm to 50mm) diameter mounted samples; holders also available for unmounted samples and special applications
220V/60Hz/3 phase or 380-415V/50Hz/3 phase
80 PSI filtered, regulated air; quick release coupling standard
1/2 supply operational from 15-85 PSI source
Touch-pad type with LED displays including:
* Single and central force application
* Sample force - up to 22.5 lbs. for single sample force, up to 101 lbs. for central force application
* Head/Wheel relative rotational direction: complementary or contra
* Time select and set: 0 to 99 min.
* Robust and acoustically damped mineral cast structure
* All controls located in system base for operational convenience and safety
* Drip-type abrasive suspension dispenser
* Quick lock/unlock specimen holder chuck
* Belt-driven platens for quiet operation
* http://www.buehler-met.de/fileadmin/user_upload/pdf/phoenix4.pdf
* 3 Speciman Loading Holders:
* 1 - 2" 6 Position (see pictures for difference)
* The unit has the Master Power Key, but it has broken off inside the lock. We were able to turn the switch with a Flat Screwdriver.
* One of the plastic rings covers is broken
