Bodine pacesetter 2702 bu adjustable speed drive
BODINE PacESETTER 2702BU Adjustable Speed Drive
* Protected chassis (IP 20) for clean environments or installation into OEM machinery
* Speed control via key pad, external speed pot, or external analog signal
* 25 functions programmable via key pad
* 3 selectable Volts/Hz patterns for each input frequency
* 3 dedicated and 2 multifunction inputs
* 1 dedicated and 1 multifunction output
* Adjustable dynamic braking
* Protection against overload, over voltage, under voltage, overheating, and motor short circuit
* Dimensions 2.83" x 5.20" x 4.64"
* UL Listed, CE Mark on models 2702, 2712 and 2722
* three Phase output 230V 1.4A0 - 120Hz
* single Phase input 200 - 240V 50/60Hz

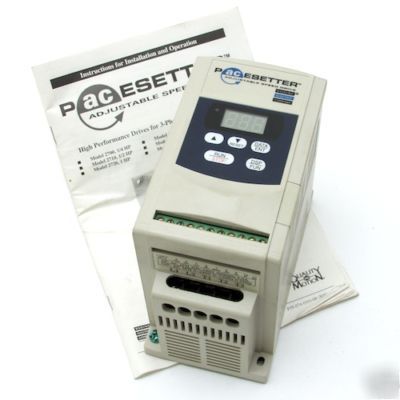

New in original box and manual. It was a sample.
