35 ton 96" bed diacro 16-96 press brake, manual back ga
35 Ton 96" Bed Diacro 16-96 PRESS BRAKE, Manual Back Ga
35 Ton 96" Bed Diacro 16-96 PRESS BRAKE, Manual Back Gauge

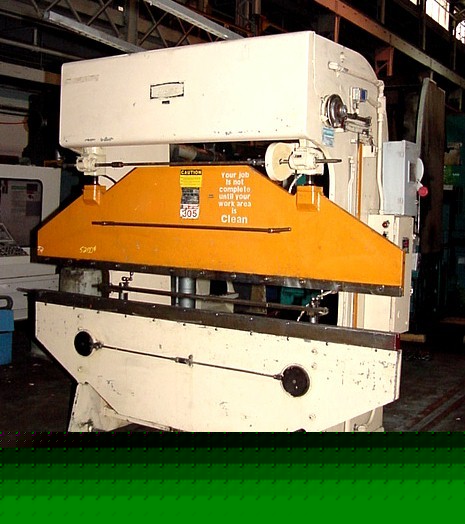

35 TON x 8' DIACRO HYDRO-MECHANICAL BRAKE
MODEL 16-96 S/N 6600776256 NEW 1976
CAPACITY (96" X 16 GA.) ............... 35 TON
OVERALL BED LENGTH .................... 96"
DISTANCE BETWEEN HOUSINGS ............. 62"
CAPACITY IN MILD STEEL ................ 16 GA.
STROKE LENGTH ......................... 2"
RAM ADJUSTMENT ........................ 3"
SHUT HEIGHT ........................... 9"
MOTOR HORSE POWER...................... 3
APPROXIMATE DIMENSIONS ....... 96" X 44-1/2" X 92" TALL
APPROXIMATE WEIGHT .................... 5,800 LBS
- DUAL SPEED OPERATING CYCLE WITH POWER WORK STROKE WHICH
CUTS THE RAM SPEED AS THE DIE MAKES CONTACT
