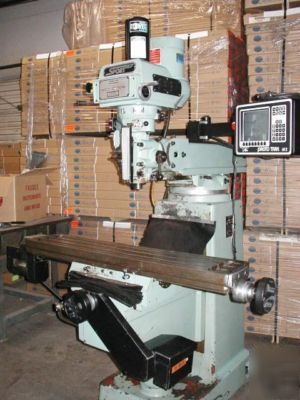

Southwest industries proto trak sport K3 cnc mill
q SOUTHWESTERN INDUSTRIES TRAK SPORT K3 Vertical Knee Type Milling Machine With Proto TRAK M-2 Control, 3Hp, 230-Volt, 3Ph, 60 Hz
Spindle Speed Vari-speed head 60-4200 RPM
Head Tilt 45 deg. forward, 45 deg. back, 90 deg. left, 90 deg. right
Spindle Motor Power, Vari-speed head - 3HP
Power Requirement Control 110V; 1P; 10A
Power requirements, machine with vari-speed head - 220/440V;3P; 8.5/4.25A
Maximum Weight on Table 850 lbs.
Machine dims l,w,h, - 71 x 59 x 84
Maximum rapid feed 100 IPM
Way surface type Dovetail X, Z Square Y
Precision 7207 CP4 spindle bearings
Chrome hardened and ground quill
Slide ways are Turcite coated
Wide way surfaces are hardened and ground
