New digital lcd multimeter auto range with pc interface

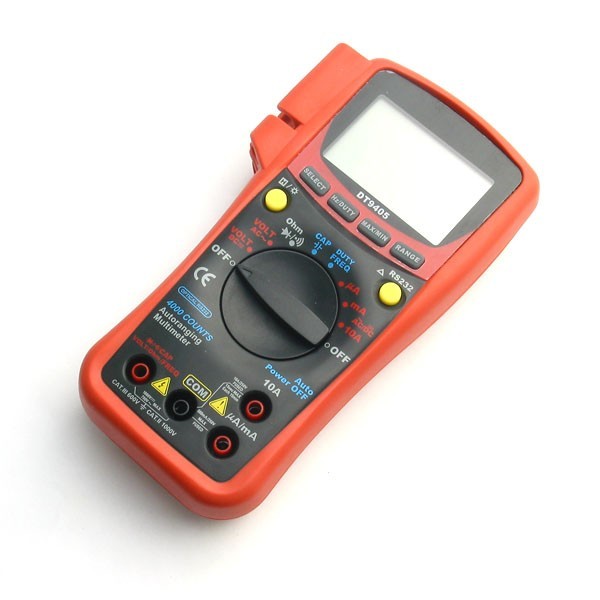

Digital LCD Multimeter Auto Range with PC Interface NEW
The large LCD display is easy to read and a back light allowing for reading in dark workshops. The central dial has various positions allowing you to choose which is appropriate for the measurement you want to take, making this an essential piece of equipment for general maintenance.
Complete with a PC interface, this is a professional quality instrument, designed for use by technicians and DIY-ers who need accurate and reliable readings. The 3 3/4 digital multimeter has a wide range of measurement capabilities and a sturdy body which is protected by a bright red rubber casing.
* Maximum, minimum and relative readings on voltage ranges
* Maximum, minimum and relative readings on current ranges
* Maximum, minimum and relative readings on resistance ranges
* No need for multiple meters - 9 great functions in ONE meter
* Easy-to-read back lit LCD screen - great for testing in dark conditions
* Tough unit with protective rubber casing
* Display: 3 3/4 digit large LCD display with a maximum reading of 4000
* Range control: auto range/manual range control
* Polarity: automatic negative polarity indication
* Zero adjustment: automatic
* Safety standards: meets IEC1010 Pollution Degree 2 and Over-Voltage Category 2
* Operating temperature: 32 F - 104 F (0 C - 40 C)
* Operating humidity: <80% RH
* Storage temperature: -4 F - 140 F (-20 C to 60 C)
* Dimensions: 98mm x 177mm x 39mm (W x H x D)
* Weight including battery: 300g
400mV range 250V RMS. Others 1000V DC or AC 750V RMS
Fast fuse 0.5A/250V & fast fuse 10A/250V. 10A for 15 secs per 15mins max
(Not suitable for measuring circuit currents that are over 250V)
Fast fuse 0.5A/250V & fast fuse 10A/250V
(2.5% rdg +5) @ a frequency below 10kHz
1MHz: 0.7V RMS; >1MHz: 1.5V RMS
The digital multimeter with PC interface is brand new and boxed and is complete with:
