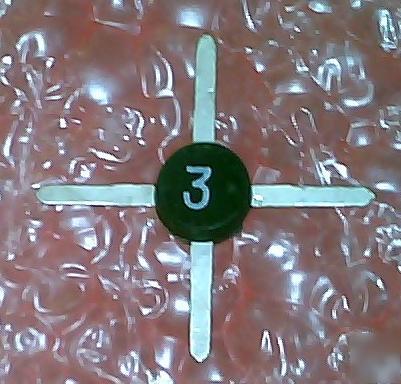

Msa-0304 dc to 1.6 ghz mmic
11.0 dB Typical Gain at 1.0 GHz
Unconditionally Stable (k>1)
The MSA-0304 is a high performance slicon bipolar Monolithic icrowave Integrated Circuit (MMIC) housed in a low cost plastic package.
This MMIC is designed for use as a general purpose 50 W gain block. Typical applications include narrow and broad band IF and RF amplifiers in industrial and military applications.
The MSA-series is fabricated using HP s 10 GHz f
T, 25 GHz f MAX, silicon bipolar MMIC process which uses nitride self-alignment, ion implantation, and gold metallization to achieve excellent performance, uniformity and reliability. The use of an external bias resistor for temperature and current stability also allows bias flexibility.
