Hp/agilent 8495D manual step attenuator, dc to 26.5 ghz

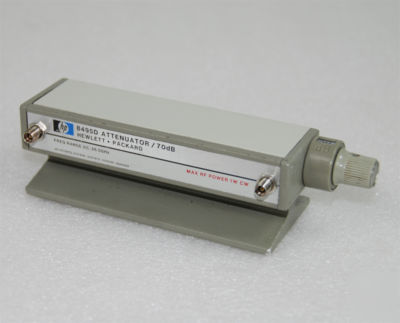

HP/Agilent 8495D Manual Step Attenuator, DC to 26.5 GHz
* Frequency range: dc to 26.5 GHz
* Insertion loss at 0 dB: 0.4 dB + 0.09 dB/GHz
* Maximum SWR: 1.6 to 12.4 GHz, 1.9 to 18 GHz, 2.2 to 26.5 GHz
* Repeatability life: 0.03 dB maximum
* 5 million cycles per section
* Maximum RF input power: 1 W (average), 100 W (peak)
* Connector type: 3.5 mm female
