Cnc router 32"X24"X6" hd 3 axis package, nsk, G540

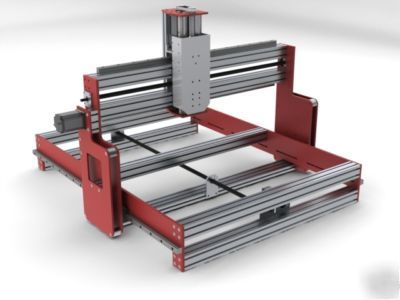

NEW IM3224HD DESKTOP CNC ROUTER - NSK 3 AXIS G540 PACKAGE
The NSK linear guides are an upgrade from our standard HIWIN 15mm rail, offered at an absolutely incredible price. The X and Y axes on this machine are fit with high capacity 20MM NSK linear guides, while the Z axis uses high capacity 15mm guides. This upgrade further increases load capacities, rigidity, and bearing wear life, on an already stout router package.
32.0"x24.5"x6.5" / 42"x36"x32"
1.5HP Colombo RV55 Spindle: The Colombo RV55 spindle adds a new level of performance to the IM series routers. Colombo is world renown for its quality construction and performance. This spindle provides a true 1.5hp and is driven by a matching Variable Frequency Drive under full Mach 3 control. Offering near zero runout (<.0004"), this spindle allows for fine detail work as well as high performance, high speed cutting capabilities. Speed range from 1,000 to 18,000 RPM.
3HP Colombo RV73 Spindle: The Colombo RV73 spindle adds a new level of performance to the IM series routers. Colombo is world renown for its quality construction and performance. This spindle provides a true 3hp (2.2KW) and is driven by a matching Variable Frequency Drive under full Mach 3 control. Offering near zero runout (<.0004"), this spindle allows for fine detail work as well as high performance, high speed cutting capabilities. Speed range from 1,000 to 24,000 RPM. Constructed with high precision dual angular contact bearings at the tool end.
