Dynaric df-20 strapping machine

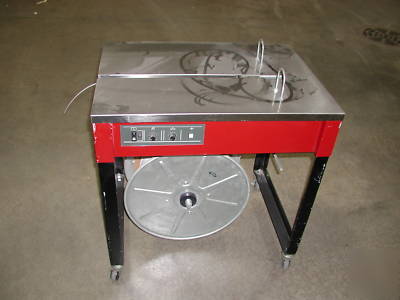

This is a Dynaric DF-20 strapping machine. Purchase of this machine would include one nearly full roll of strapping material. Please contact me with any questions.
Seal Head Location: Bottom:9.25" in from the right hand edge
Power Supply: 115 volts, single phase
Cycle Initiation: Strap insertion with "ACASS" system
Tension: External electronic adjustable control: 6 - 120 lbs.
Min. Package Size: 4" H x 2.4" W
Mobility: (4) casters two of which are locking
Strapping Size: 1/4", 3/8", 1/2"
Dispenser: 9" I.D. /8" Face / 18" O.D.
Operates on 115 volt single phase power
Widest available tension range
1/2", 3/8, or 1/4" strapping can be used
Fast cycle time: 25-30 per minute
Audible cycle alert safety signal (ACASS) system
Strap feed and tension externally controlled
Minimal maintenance and lubrication required
Casters allow for easy movement within your facility
Limited number of moving parts
Quick release feed wheel system for easy clearing and cleaning
Dispenser braking system with no belts to wear out or adjust
Complete accessibility for maintenance
