Trebor mega 960 air operated high purity chemical pump

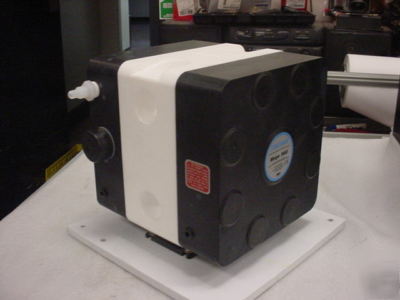

Trebor Mega 960 Air Operated High Purity Chemical Pump

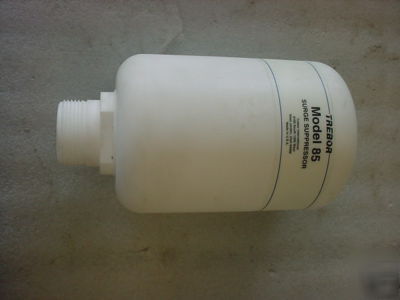

With Model 85 Surge Suppressor
Product Type: Ultra-high-purity Chemical Pump
No-stall air logic design provides reliable operation in all pump conditions
Up to 80 psi operating pressure
Flow capapcity up to 25 gpm (95 lpm)
Handles chemical temperatures up to 100 C
Explosion-proof, pneumatic operation with clean dry air or nitrogen
Dry suction life to 10 feet (3 meters) water column for better life of more viscous, higher specific gravity chemicals
Air-side components are constructed of polypropylene/PTFE/PFA/PEEK/alumina ceramic
All wetted seals are 100% PTFE; standard air-side seals are FKM (Viton ) - additional air-side seal options are available
US Patent 5,370,507-patented floating PTFEO-ring check valve for increased dry suction prime and overall pumping efficiency
Non-penetrated double layer PFA diaphragm design for longer diaphragm life and safe double chemical containment
Simple, compact design with externally accessible valves for easy field service and preventative mainenance
User or factory serviceable - maintenance internal exceeding one year
Class 1000 clean room assembled, tested and packaged

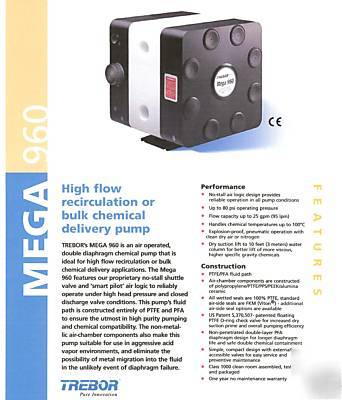

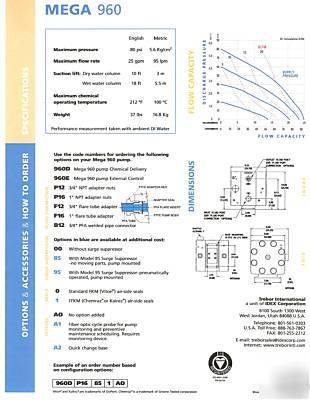

See all pictures here for dimensional drawings and other information.
Complete Information and support at
Please check my other listings for Wilden Pumps models UU.050 with or without dampener and Model UU2 with dampener
