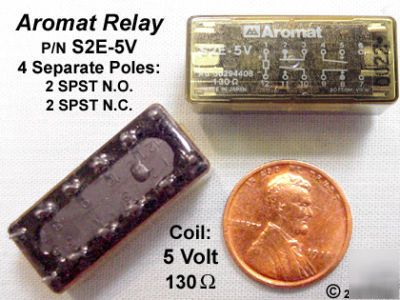

(3) miniature 4PST (or dpdt) relays _ 5 volt dc coil
*This relay has 4 sets of contacts, 2 Normally Open and 2 Normally Closed. This may be handy in some designs, but of course they can be wired like a conventional DPDT relay too.
Pins are spaced 0.2" in rows that are 0.3" apart. Perf-board ready.
The wiring diagram is printed on the top of the relay case. The pins are numbered on the bottom. We do not have a datasheet.
