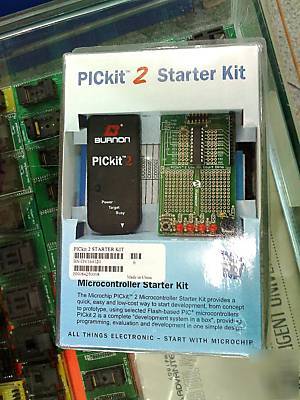

Pic programmer mplab PICKIT2 PICICD2 lite ---burnon---
BURNON Brand is the Microchip authorized manufacturer of PICKit2
= NOTE: This list shows support for the PICkit 2 Programmer =
= software application. It does not show support for using the =
= PICkit 2 within MPLAB IDE. For a list of MPLAB supported =
= parts, see the MPLAB IDE PICkit 2 Readme. =
= (Typically in C:\Program Files\Microchip\MPLAB IDE\Readmes) =
+ Indicates parts that require 4.75V minimum VDD for programming.
PICkit 2 may not be able to generate sufficiently high VDD,
so an external 5.0v power supply may be required.
# indicates Midrange parts that support low Vdd programming
PIC10F200 PIC10F202 PIC10F204 PIC10F206
PIC12F508 PIC12F509 PIC12F510 PIC12F519
PIC12F629 PIC12F635# PIC12F675 PIC12F683#
PIC16F610 PIC16HV610 PIC16F616 PIC16HV616
PIC16F627A PIC16F628A PIC16F648A
PIC16F630 PIC16F631 PIC16F636# PIC16F676
PIC16F677 PIC16F684# PIC16F685# PIC16F687#
PIC16F688# PIC16F689# PIC16F690#
PIC16F73+ PIC16F74+ PIC16F76+ PIC16F77+
PIC16F737+ PIC16F747+ PIC16F767+ PIC16F777+
PIC16F873 PIC16F874 PIC16F876 PIC16F877
PIC16F873A PIC16F874A PIC16F876A PIC16F877A
PIC16F883# PIC16F884# PIC16F886# PIC16F887#
PIC16F913# PIC16F914# PIC16F916# PIC16F917#
PIC16F723 PIC16LF723 PIC16F724 PIC16LF724
PIC16F726 PIC16LF726 PIC16F727 PIC16LF727
PIC18F242 PIC18F252 PIC18F442 PIC18F452
PIC18F248 PIC18F258 PIC18F448 PIC18F458
PIC18F1220 PIC18F1320 PIC18F2220
PIC18F1230 PIC18F1330 PIC18F1330-ICD
PIC18F2221 PIC18F2320 PIC18F2321 PIC18F2331
PIC18F2410 PIC18F2420 PIC18F2423 PIC18F2431
PIC18F2450 PIC18F2455 PIC18F2458 PIC18F2480
PIC18F2510 PIC18F2515 PIC18F2520 PIC18F2523
PIC18F2525 PIC18F2550 PIC18F2553 PIC18F2580
PIC18F2610 PIC18F2620 PIC18F2680 PIC18F2682
PIC18F4220 PIC18F4221 PIC18F4320 PIC18F4321
PIC18F4331 PIC18F4410 PIC18F4420 PIC18F4423
PIC18F4431 PIC18F4450 PIC18F4455 PIC18F4458
PIC18F4510 PIC18F4515 PIC18F4520 PIC18F4523
PIC18F4525 PIC18F4550 PIC18F4553 PIC18F4580
PIC18F4610 PIC18F4620 PIC18F4680 PIC18F4682
PIC18F4685 PIC18F6310 PIC18F6390 PIC18F6393
PIC18F6410 PIC18F6490 PIC18F6493 PIC18F6520
PIC18F6585 PIC18F6620 PIC18F6621 PIC18F6622
PIC18F6627 PIC18F6628 PIC18F6680 PIC18F6720
PIC18F8310 PIC18F8390 PIC18F8393 PIC18F8410
PIC18F8520 PIC18F8525 PIC18F8527 PIC18F8585
PIC18F8620 PIC18F8621 PIC18F8622 PIC18F8627
PIC18F8680 PIC18F8720 PIC18F8722 PIC18F8723
PIC18F24J10 PIC18F25J10 PIC18F44J10 PIC18F45J10
PIC18LF24J10 PIC18LF25J10 PIC18LF44J10 PIC18LF45J10
PIC18F63J11 PIC18F63J90 PIC18F64J11 PIC18F64J90
PIC18F65J10 PIC18F65J11 PIC18F65J15 PIC18F65J50
PIC18F66J10 PIC18F66J11 PIC18F66J15 PIC18F66J16
PIC18F66J50 PIC18F66J55 PIC18F66J60 PIC18F66J65
PIC18F67J10 PIC18F67J11 PIC18F67J50 PIC18F67J60
PIC18F83J11 PIC18F83J90 PIC18F84J11 PIC18F84J90
PIC18F85J10 PIC18F85J11 PIC18F85J15 PIC18F85J50
PIC18F86J10 PIC18F86J11 PIC18F86J15 PIC18F86J16
PIC18F86J50 PIC18F86J55 PIC18F86J60 PIC18F86J65
PIC18F87J10 PIC18F87J11 PIC18F87J50 PIC18F87J60
PIC18F96J60 PIC18F96J65 PIC18F97J60
PIC18F13K50 PIC18LF13K50 PIC18F14K50 PIC18LF14K50
PIC18F24K20 PIC18F25K20 PIC18F26K20
PIC18F44K20 PIC18F45K20 PIC18F46K20
PIC24FJ64GA006 PIC24FJ64GA008 PIC24FJ64GA010
PIC24FJ96GA006 PIC24FJ96GA008 PIC24FJ96GA010
PIC24FJ128GA006 PIC24FJ128GA008 PIC24FJ128GA010
PIC24FJ128GA106 PIC24FJ128GA108 PIC24FJ128GA110
PIC24FJ192GA106 PIC24FJ192GA108 PIC24FJ192GA110
PIC24FJ256GA106 PIC24FJ256GA108 PIC24FJ256GA110
PIC24FJ64GB106 PIC24FJ64GB108 PIC24FJ64GB110
PIC24FJ128GB106 PIC24FJ128GB108 PIC24FJ128GB110
PIC24FJ192GB106 PIC24FJ192GB108 PIC24FJ192GB110
PIC24FJ256GB106 PIC24FJ256GB108 PIC24FJ256GB110
PIC24HJ64GP206 PIC24HJ64GP210 PIC24HJ64GP506
PIC24HJ128GP206 PIC24HJ128GP210 PIC24HJ128GP306
PIC24HJ128GP310 PIC24HJ128GP506 PIC24HJ128GP510
PIC24HJ256GP206 PIC24HJ256GP210 PIC24HJ256GP610
dsPIC33FJ12GP201 dsPIC33FJ12GP202
dsPIC33FJ32GP202 dsPIC33FJ32GP204
dsPIC33FJ32GP302* dsPIC33FJ32GP304*
dsPIC33FJ64GP202* dsPIC33FJ64GP204*
dsPIC33FJ64GP206 dsPIC33FJ64GP306 dsPIC33FJ64GP310
dsPIC33FJ64GP706 dsPIC33FJ64GP708 dsPIC33FJ64GP710
dsPIC33FJ64GP802* dsPIC33FJ64GP804*
dsPIC33FJ128GP202* dsPIC33FJ128GP204*
dsPIC33FJ128GP206 dsPIC33FJ128GP306 dsPIC33FJ128GP310
dsPIC33FJ128GP706 dsPIC33FJ128GP708 dsPIC33FJ128GP710
dsPIC33FJ256GP506 dsPIC33FJ256GP510 dsPIC33FJ256GP710
dsPIC33FJ128GP802* dsPIC33FJ128GP804*
dsPIC33FJ12MC201 dsPIC33FJ12MC202
dsPIC33FJ32MC202 dsPIC33FJ32MC204
dsPIC33FJ32MC302* dsPIC33FJ32MC304*
dsPIC33FJ64MC202* dsPIC33FJ64MC204*
dsPIC33FJ64MC506 dsPIC33FJ64MC508 dsPIC33FJ64MC510
dsPIC33FJ64MC706 dsPIC33FJ64MC710
dsPIC33FJ64MC802* dsPIC33FJ64MC804*
dsPIC33FJ128MC202* dsPIC33FJ128MC204*
dsPIC33FJ128MC506 dsPIC33FJ128MC510 dsPIC33FJ128MC706
dsPIC33FJ128MC708 dsPIC33FJ128MC710
dsPIC33FJ256MC510 dsPIC33FJ256MC710
dsPIC33FJ128MC802* dsPIC33FJ128MC804*
dsPIC30F2010 dsPIC30F2011 dsPIC30F2012
dsPIC30F3010 dsPIC30F3011 dsPIC30F3012
dsPIC30F4011 dsPIC30F4012 dsPIC30F4013
dsPIC30F5011^ dsPIC30F5013^ dsPIC30F5015
dsPIC30F6010A dsPIC30F6011A dsPIC30F6012A
dsPIC30F6013A dsPIC30F6014A dsPIC30F6015
^ These 2 devices are not supported for low VDD programming.
PIC32MX320F032H PIC32MX320F064H PIC32MX320F128L
PIC32MX360F256L PIC32MX360F512L
PIC32MX440F128L PIC32MX440F256H
PIC32MX460F256L PIC32MX460F512L
HCS200 HCS201 HCS300 HCS301 HCS320
HCSxxx File -> Import HEx Notes:
The first line only may be imported from SQTP
*.NUM files generated by the KEELOQ tool in
!!IMPORTANT!! - MCP250xx devices are OTP and can only be
Connections for MCP250xx devices
PICkit 2 Pin MCP Device Pin (DIP)
- The MCP device MUST be powered from PICkit 2!
NOTE: Other supported voltage grades are listed in parentheses
next to the device. Select the "LC" part number to program
24LC128 (AA)(FC) 25LC640A (AA)*
24LC1025 (AA)(FC) 25LC512 (AA)
PICkit 2 Pin 11LC Device Pin (DIP)
! 11LC devices may not program properly below 3.6V VDD.
This is a limitation of the PICkit 2 AUX IO pin.
PICkit 2 Pin 24LC Device Pin (DIP)
(5) PGC 6 SCL (driven as push-pull)
(6) AUX 5 SDA (requires pullup)
! 24LC devices may not program properly below 3.6V VDD.
PICkit 2 Pin 25LC Device Pin (DIP)
PICkit 2 Pin 93LC Device Pin (DIP)
