Phoenix contact 2-pole tmc 42-02-10A tmc 42-02 thermal
Click on picture for a larger image.

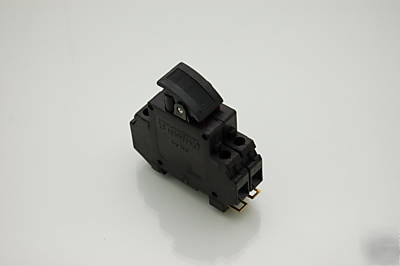

Phoenix Contact 2-pole TMC 42-02-10A TMC 42-02 Thermal-Magnetic Circuit Breaker
This is a Pheonix contact Thermal-magnetic circuit breaker. It is the 10A version. From the Pheonix Contact website, it features:
* Maximum Voltage Rating AC 250 V, 50/60 Hz; DC 80 V
* Current Rating Range 42-01 : 0.10...16 A
* Typical Life 5,000 operations at 2xlN
* Temperature Range 0 to 55 C (+32 to +131 F)
* Creepage Resistance PTI 600 to IEC 112
* (IEC 664 and 664A) Rated Impulse Withstand Voltage Pollution Degree
* (IEC 664 and 664A) Test Voltage
* Operating Area AC 4,000 V (double insulation)
* Interrupting Capacity >100 M (DC 500 V)
* (VDE 0660, Part 101, P-2) 0.05 to 0.8 A Self Limiting
* (UL 1077/EN60934 PC1) IN UN Self Limiting
* 0.05 to 4.5 A 250 V AC 200 A
* 0.05 to 16 A 250 V AC 1,000 A
* 0.05 to 16 A 80 V DC 1,000 A
* (IEC 529/DIN 40050) Operating Area IP 40,Terminal Area IP 20
* Vibration 5g (57-50 Hz), +0.38 mm (10-57 Hz) to IEC 68-2-6,
* Test Fc 10 frequency cycles/axis
* Shock 25g (11ms) to IEC 68-2-27,Test Ea
* Corrosion 96 hours at 5% saltspray to IEC 68-2-11,Test Ka
* Humidity 240 hours at 95% RH to IEC 68-2-3,Test Ca
* Conductor Size 0.5-6mm2 (AWG 20-AWG 10)
* Recommended Torque 0.8 Nm max
For more infromation, please visit the Pheonix contact website, in particular the pdf on the TMC 42-01 series:
http://phoenixcontact.com/local_content_pdf/pdf_eng/CB_ProtectionBrochure_Final_LoRes_TMC42.pdf
Thanks for looking and let me know if you have any questions about the item, I will do my best to answer. The unit is sold untested and is guaranteed NON-DOA with a 7 day ROR.
