Ikeda rms-9 radial arm drill 3' x 9" radial arm drill

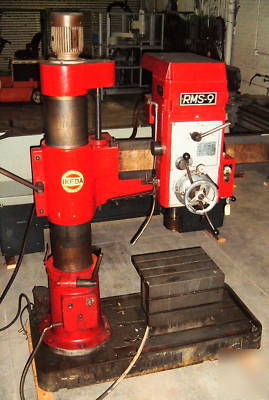

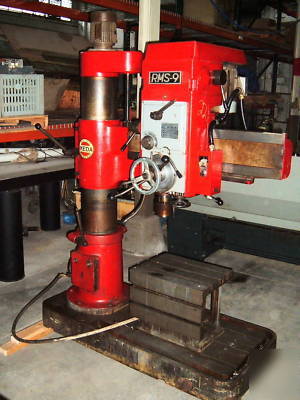

3' x 9" Ikeda Radial Arm Drill RMS-9
Distance Column to Spindle Center(max.) ......... 36"
Distance Column to Spindle Center (min.) ......... 11.82"
Distance Spindle End to Face of Base (max.) ...... 42.95"
Distance Spindle End to Face of Base (min.) ...... 11.03"
Length of Area of Spindle Stroke ......... 9.06"
Bearing Diameter of Spindle ............... 1.97"
Quill Diameter of Spindle ..................... 3.30"
Taper Hole of Spindle ................ MT. No. 4
Number of Spindle Speeds ......................... 9

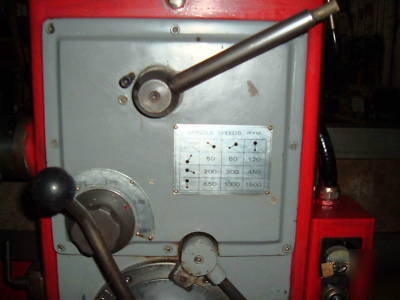

Spindle Speeds ........50, 80, 120, 200, 300,450,650,1000,1500 RPM'S
Number of Spindle Feeds ........... 4 (.003, .006,.010, .015)
Size of Working Base ........ 37.04" x 23.04"
Diameter of Column ........ 9.54"
Distance of Column Center to Arm End.... 51.42"
Size of Machine ............. 28" x 61" x 85"
Main Motor ....................................... 3HP
Arm Elevating Motor ........................ 1HP
I WILL LOAD FOR FREE ON YOUR TRUCK OR TRAILER.
