Vestil portable scissor tables pst-2448-1-46

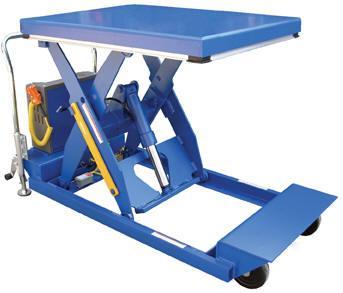

Vestil Portable Scissor Tables PST-2448-1-46
Heavy duty powered lift tables to transport and elevate your heaviest loads. A heavy duty 12V DC powered unit with deep cycle battery and an on-board battery charger is standard, a battery charge indicator is optional. Features 8" phenolic casters (2 swivel and 2 rigid), floor lock, and patented electric pinch point guards. A hand held pendant control with an 8 foot coil cord and mounting brackets are available separately. Minimum frame width is 34". Add 25" to platform length for the overall length.
* Electric pinch point guards
* Upward travel limit switch
* Lock in place safety maintenance support
* Emergency stop if hose breaks
* Heavy duty 12V power unit provides maximum torque for faster lift speeds and minimum amp draw.
* Heavy duty deep cell battery allows maximum use between charges
* Cast iron pump with integral valving including pressure relief valve, check valve, down solenoid valve, and pressure compensation flow control valve.
* NEMA-4 pendant hand control has 8' coil cord
* Protective battery cover
* Displacement style hydraulic actuator - rod end installed down
* Hydraulic actuators have internal brass velocity fuse w/ stainless steel spring
* Phenolic Casters are 8" x 2", 2 rigid and 2 swivel
* Foot actuated floor lock is standard
* Conveniently located air bleed screw on hydraulic actuators
* Replaceable deck, main axle pins and bearings
* Rollers - Cold finished steel with case carburizing to .010 inch with Rockwell "C" 40
* Pins - Cold rolled and finished to bearing manufacturer's specifications
* Bearings - Self-lubricating with compressive strength of 44,000 psi
* Swaged on high pressure hose fittings, Pump intake/return hose is 1/2"
PST- (width)(length) - Capacity - Raised Height
Portable Scissor Table Options
Hand Control With Battery Is Standard
24V Hand Control with 115V 1 phase
Factory Air Over Oil W/Foot Treadle Control
Bench top style battery charger
*Filter Regulator - Lubricator Required To Operate (Void Warranty w/o this)
