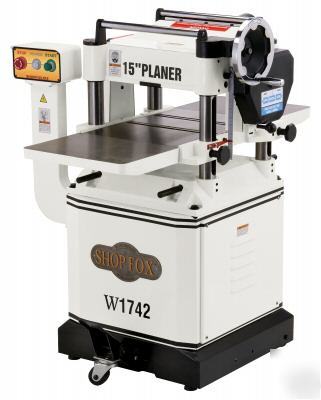

Shop fox W1742S 15" planer w/ spiral cutterhead
W1742S - 15" Planer w Spiral Cutterhead w/ Cast Iron In/Out Feed Tables
* Four column support with table locks
* Two speed automatic board feed
* Precision ground table and wings
* Heavy-duty cast iron construction
* Heavy-duty cast iron handwheels
* Motor: 3 HP, 220V, single-phase
* Maximum cutting width: 15"
* Maximum cutting height: 8"
* Minimum stock thickness: 3/16"
* Maximum cutting depth: 1/8"
* Feed rate: 16 FPM & 30 FPM
* Number of cutters: 72 inserts
* Cutterhead speed: 5000 RPM
* Power feed rollers: solid serrated steel
* Overall dimensions: 42"L x 32 1/2"W x 45 7/8"H
