New fluke 87V-ex is multimeter dmm 87VEX - in box

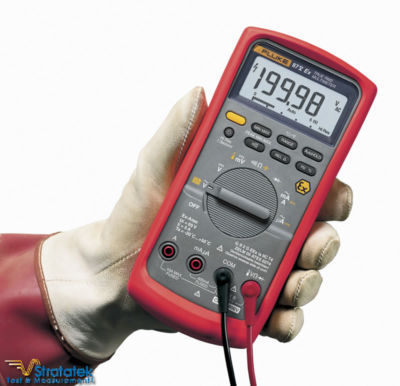

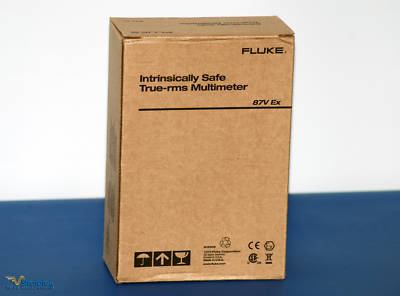

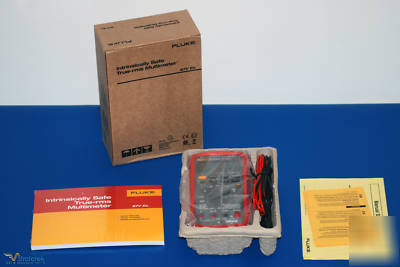

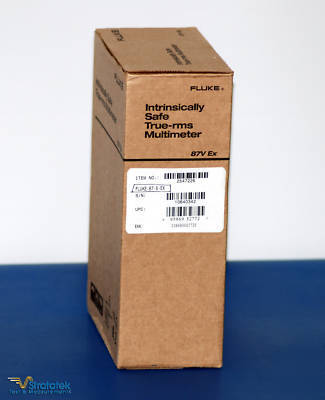

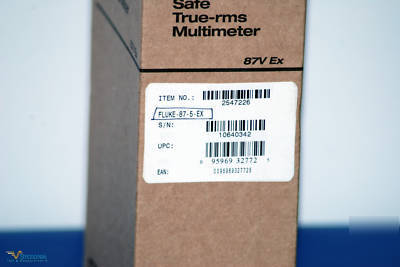

This item is a brand new in box Fluke 87V EX Intrinsically safe Multimeter DMM. Please see pictures where the actual unit is shown.
This item comes with a limited lifetime warranty offered by the manufacture.
* ATEX safety rating for use in Ex-zone 1 and zone 2
* CAT IV 600 V electrical safety rating
* Unique function for accurate voltage and frequency measurements on variable speed motor drives (VSD's)
* Large display with bright, two-level backlight makes the 87V Ex easy to read in all lighting environments
* Built-in thermometer (probe included)
* True-rms ac voltage and current for accurate measurements on non-linear signals
* 4-1/2 digit mode for precise measurements (20,000 counts)
* Measure up to 1000 V and 10 A (ac/dc)
* Frequency to 200 kHz and % duty cycle
* Resistance, continuity and diode test
* 10,000 F capacitance range for components and motor caps
* Min/Max-Average and Peak capture to record transients and variations automatically
* Relative mode to remove test lead interference on resistance measurements
* Auto and manual ranging for maximum flexibility
* Analog bargraph for fast changing or unstable signals
* ATEX safety rating: II 2 G EEx ia IIC T4
* Electrical safety rating: EN61010-1 CAT IV 600 V and CAT III, 1000 V
Intrinsically safe version of the world's most popular Multimeter
With its high performance, accuracy and motor drive compatibility, the Fluke 87V is the most popular industrial multimeter in the world. Now Fluke has introduced a new intrinsically safe version the 87V Ex for measurements in and around hazardous areas.
The new Fluke 87V Ex has all the measurement and troubleshooting functions of the proven Fluke 87V. Unlike most other ATEX-certified tools, it can be used both inside and outside the hazardous zone (ATEX Zones 1 & 2) without compromising performance or compliance. So there's no need to carry different tools for use inside or outside the hazardous zones. It also has a built-in thermometer with TC probe, further reducing technicians' tool counts.
Intrinsically Safe True-RMS Multimeter Includes:
Correctly measure pulse-width modulated motor drive signals
Until now, there hasn't been a multimeter able to accurately measure adjustable speed drives. But the Fluke 87V is designed specifically to handle these complex signals. Think of the potential productivity you'll gain by taking the guesswork out of drive system troubleshooting. Measurements are correct each and every time.
* Unique function for accurate measurements of noisy pulse-width modulated AC voltage.
* Measures correctly at the ASD and at the motor terminals
* Accurately measure the frequency (motor speed). Frequency measurement not affected by the ASDs carrier frequency
* Measure AC current with an optional current clamp accessory
* Compare reading from the 87V with the display on the ASD
* Special shielding blocks high frequency, high-energy noise generated by large drive systems
Complex PWM drive signals are not a problem for the Fluke 87V
Pulse-width modulated detail of 50 Hz motor drive output voltage. 1000 V, 50 micro-second pulses can cause erratic behavior in some test equipment.
