Precision ag x-y-z axis motorized linear slide system

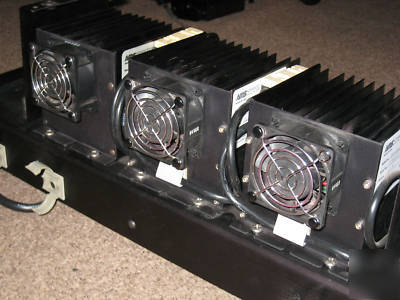

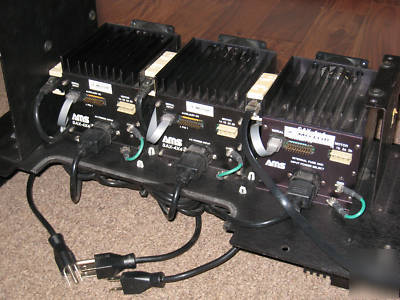

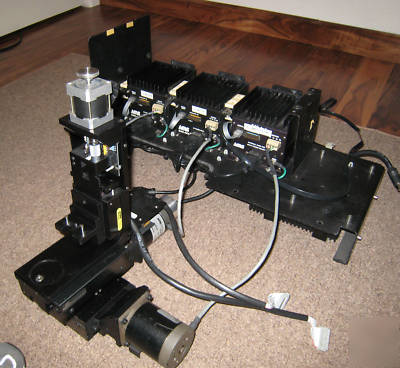

* Three Advanced Micro Systems SAX-44-422 Precision Step Motor Controllers on an aluminum platform.
* One Elpac Power Supply (on the bottom side of the platform) Model# WRI2731, 27W output, +5V 3A

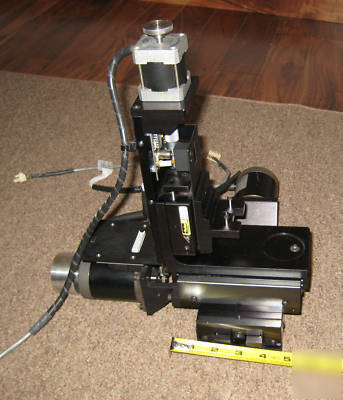

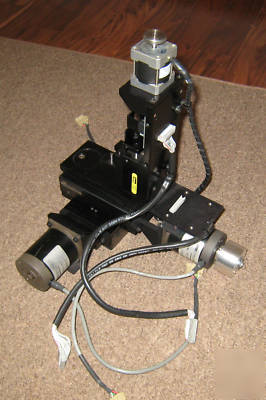

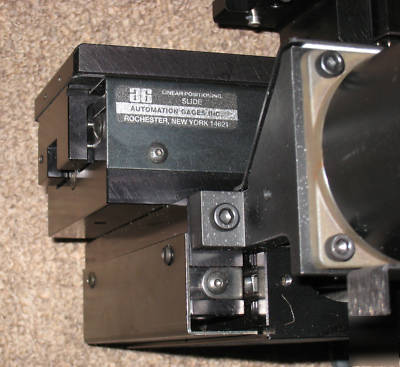

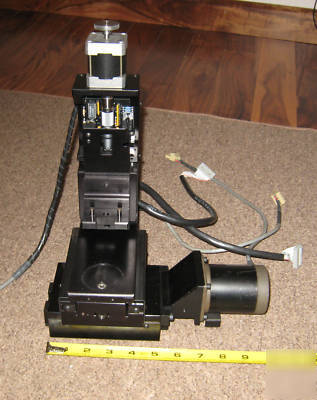

* Automation Gauges Inc. X-Y-Z Linear Positioning Slide (I think the 2 lower slides are Ironman Ball Slides and the upper slide is a Parker Daedal micrometer slide)
* The lowermost slide (5" long) has an Advanced Microsystems AM23-150-2 Stepping Motor

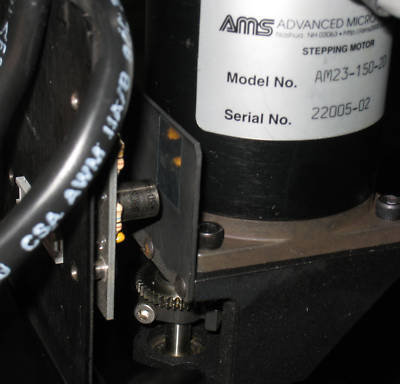

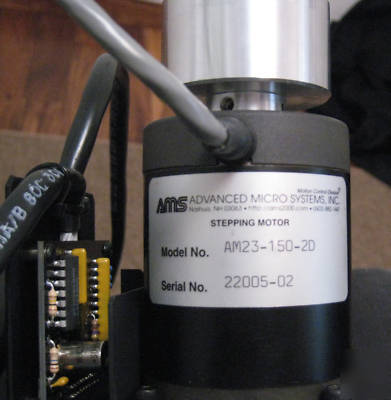

* The middle slide (5" long) has an Advanced Microsystems AM23-150-20 Stepping Motor

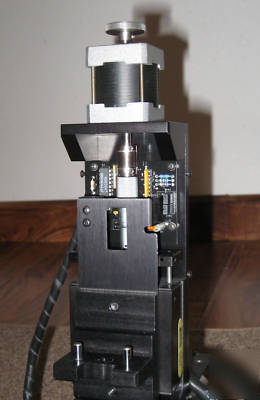

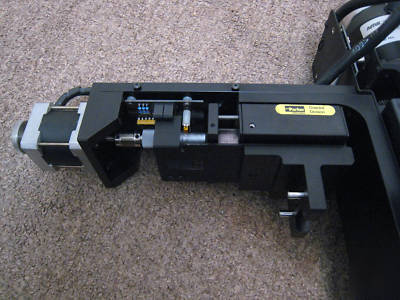

* The upright Parker Daedal micrometer slide (looks like 1/2" travel) has an Eastern Air Devices Type ZB17BBK-200 Stepping Motor
* The middle slide has an electronic circuit board and an electric eye apparently to restrict travel up and down a 3/4" metallic strip.

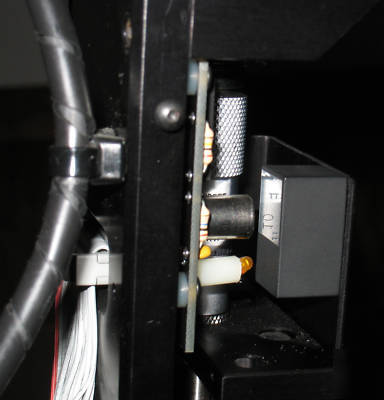

* The upright slide has an electronic circuit board and an electric eye apparently to restrict travel up and down a 1/2" metallic strip
* The middle and upright slides have knobs on the motors to manual adjust the slides.
