Panasonic wv-CK2020A cctv security monitor

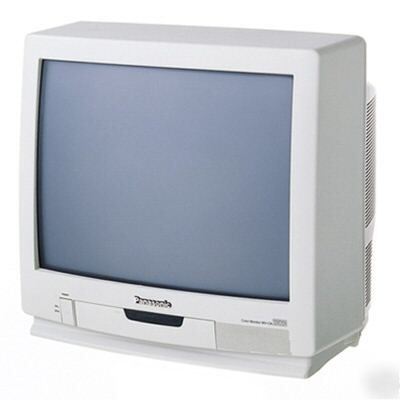

Panasonic WV-CK2020A 20" Color Video Monitor
The Panasonic WV-CK2020A is a professional 20" color video monitor with a white colored housing. The CRT displays 500 horizontal lines of resolution. It accepts both Composite and S-Video inputs and it has BNC looping output as well. This unit also supports mono audio with RCA input, a looping RCA output and a built-in speaker.
51cm (20") diagonal actual visual size
500 TV lines horizontal resolution (S-video)
Looping through BNC connectors for video input and output
Looping through RCA connectors for audio input and output
Maximum 0.7W for speaker output
Display Size 55cm (21-9/16") diagonal - size approximate Resolution 500 lines horizontal at center Input/Output Video(Input:1/Output:1)-BNC S-Video(Input:1) Audio(Input:1/Output:1)-RCA Rack-Mountable No Dimensions (H x W x D) 18.375'' x 20.0625'' x 18.875'' Weight 46.3 lbs
20" (508mm) diagonal, 90 deflection
1 x BNC, 1.0V[p-p] composite/75 , with auto termination
11 x BNC, 1.0V[p-p] composite/75 , with auto termination
1 x RCA, 8dB/Hi-z, RCA standard jack
In perfect working condition, With 90 days full warranty!
"B" stock category item. With full 90 days warranty.
"B" stock means either the unit was refurbished, only opened before, arrived in damaged box or some accessories were missing. We test every equipment and add any missing accessories to make sure it meets all the manufacturer's specifications and works exactly as a brand new unit.
