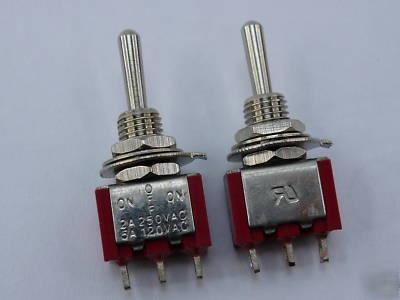

New 2 pc.toggle switch spdt momentary on off on brand
Up for sale is a lot of two (2) pieces Brand New momentary SPDT Toggle Switch.
* SPDT Momentary single pole, double throw
* 3-position, normally off (on/off/on)
* Spring loaded, self return to the centre position
* 1/8 dia. Smooth stud x 0.42 long
* Size: 7mm x 13mm x 32.5mm Long (tip to tip)
* Rated: 2A/250VAC or 5A/125VAC
* Mechanical life > 20,000 cycles
* Fits through panel thickness 4mm
* 2 pcs Posiioning flat washer
* 2 pcs Internal star lockwasher
Orders from Italy please add $2.00 for posting by registered mail, contact the seller for a revised invoice.
