Kit desktop cnc machine engraving milling router
Everything to begin machining! just plug in to your home PC via the printer port
This offer: USA and Canada only!

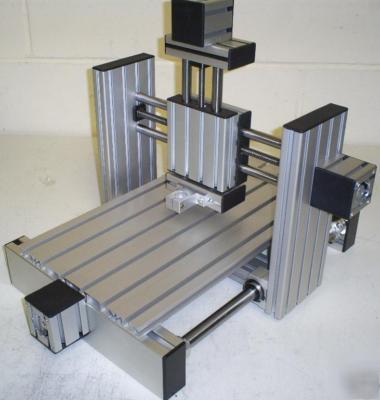

New Desktop CNC Machine MDL-2-BSX Router (All 3 Axis Ballscrews)
3 axis controller + Software (Mach3) +

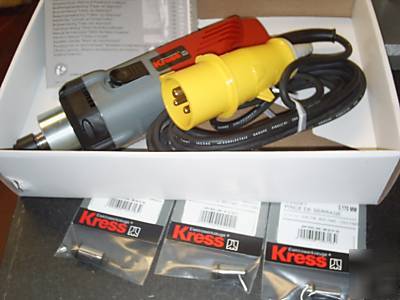

Kress 800 110V FME + 3 Collets (1/8", 1/4" and 5/16")
Manufactured in the UK by Marchant Dice Ltd (worldofcnc)

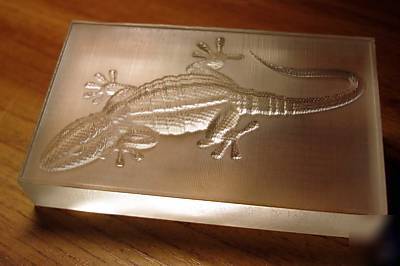

Engraving: http:// /watch?v=ndyIH1doMWg

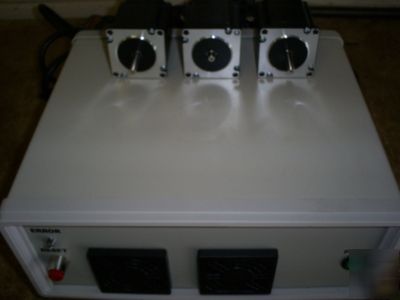

3 Axis Controller and stepper motors.
* Parallel port to the PCB break out box with all connection marked.
* 3 axis modular High current design Driver 38V x 3.5A, (optional 4 axis, + )
* Selectable micro-stepping, 2,4,8,16,32,64,128,5,10,20,25,40,50,100,125
* Selectable current: 1.3A,16.A,1.9A, 2.2A, 2.5A, 2.9A, 3.2A, 3.5A
* All driver sinput are opto-isolated to the computer.
* 28V/3.5A, 1.8 Deg 192Oz/in torque high power dual shaft stepping motor.
* Custom splash/dust proof din connector.
* Dual shaft motor for optional encoder for DRO. ( we sell the match encoder) with pre-tapped 19mm x 2 M2.5 mounting hole.
MACH 3 supplied as a license key by email....
* Converts a standard PC to a fully featured, 6-axis CNC controller
* Allows direct import of DXF, BMP, JPG, and HPGL files through LazyCam
* Generates Gcode via LazyCam, Corel Draw or Wizards
* Fully customizable interface
* Customizable M-Codes and Macros using VBscript
Clamping jaw / Collet: 1 to 10mm
(8mm (5/16") 3.175 (1/8") 6.35 (1/4")included with this offer)
Working area: (A4) XYZ Axis: 330x230x50mm (13"x9"x2")
Translation - Ballscrew x pitch (pitch / 1 revolution = axis movement)
X Axis: 12x4mm assembled with zero backlash ballnut
Y Axis: 12x4mm assembled with zero backlash ballnut
All 3 ballscrew spindles are assembled into radial flange bearings.
X Axis: x4pcs LM20UU linear bearing assembled into an SC20V housing
Y Axis: x4pcs IGUS 16mm assembled into the housing
Z Axis: x4pcs IGUS 16mm assembled into the housing
Similar Machine 1 2 3 4 5 6 7 8 9 10 11 13 14 15 16 17 18 19 20 21
Technical Information: http:// /images/MDL-Machines-Router.pdf
