Cnc single axis microstepping stepper motor driver usa

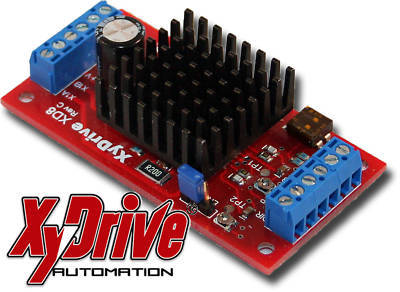

XyDrive XD8 Single Axis Bipolar Stepper Motor Driver
* Made In the USA using only Premium Quality Components
* 2.5A Max Current Per Phase
* Drive Current Infinitely Adjustable Up to 2.5A
* Switch Selectable Full, Half, 1/4 and 1/8 Step Microstepping
* Up to +35 Volt Drive Voltage
* Jumper Selectable Enable or use Enable Input
The XyDrive XD8 single axis bipolar stepper motor driver is designed to drive stepper motors up to 2.5A per phase. It is capable of microstepping operation in half, 1/4 and 1/8 steps as well as full step mode operation. The XD8 pairs perfectly with either our XD3 or XD14 isolated parallel port breakout boards to form a complete driver system. It has been tested to work with both EMC2 and Mach3 and is compatible with other software packages as well.
Click Here for the XD8 User Manual in PDF Format
