Hp agilent 34401A digital multimeter dmm 6.5 digits

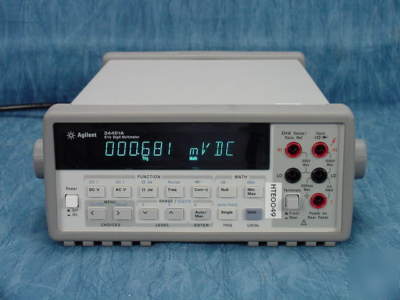

HP Agilent 34401A Digital Multimeter
This item is approximately three years old. It is used and in working condition.
The following is a brief overview of the DMM.
his manual was written to instruct ECE 3041 students on the operation and uses of
the HP34401A Digital Mulitmeter. The HP34401A is a very versatile instrument
capable of measuring numerous circuit characteristics. It is capable of measuring
electric characteristics such as: voltage, current, frequency and resistance with very
high accuracy. These functions will be the focus of this manual. The following guide is for
course-specific applications and not intended to be used as a complete user s manual. To find
more information beyond the scope of this manual, check the Where to Find More Help
he HP34401A is setup for bench-top use with AC power supply. It performs at 1000
readings/sec and has a 6 -digit display. The HP34401A will automatically adjust the
range to the characteristic being measured. It is also extremely accurate: 0.0015%
(For accuracy specifications, consult the full manual)
DC Characteristics: DC Voltage Range and input Resistances:
0.1V, 1V, 10V: input resistance selectable 10MW or > 10GW
DC Current range and shunt resistance:
AC Characteristics: true RMS: AC Voltage: from 3 Hz to 300 kHz
Resistance range: 2-wire and 4-wire
100 W, 1 kW, 10 kW, 100 kW, 1 MW and 100 MW
Frequency and Period measurement: Frequency range: 3 Hz - 300 kHz
Input voltage range: 100 mV to 750 V
