Wafios spring coiler w/ titan vertical conveyor

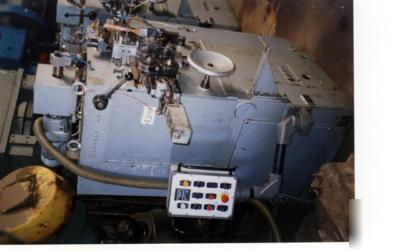

ONE Preowned WAFIOS Spring Coiler
MDL. AS41, S/N 2-2130-082, NEW 2000
WIRE DIAMETER........................................................................ 1.0 - 3.6MM
OUTSIDE DIAMETER OF SPRING............................................ 10 - 30MM
MAX. LENGTH OF FEED WIRE.................................................. 13000MM
FEED SPEEDS............................................................................ 90 & 75MM/MIN
MAX. OUTPUT AS41 ALONE...................................................... 78 SPRING/MIN.
MAX. OUTPUT COMBINED W/ FOA41 EYELET MACHINE 58 SPRING/MIN.

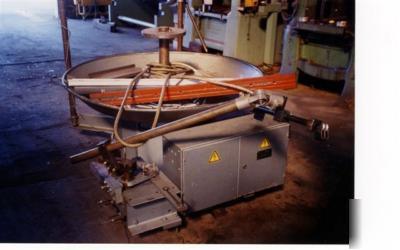

MODEL.............................................................................. AHL 410-M
DRIVE................................................................................ 4KW, 220/240/440/480V, 3PH, 60/50 CYC.
LOAD CAPACITY............................................................... 1500KG (3300LB)
WEIGHT............................................................................. 750KG (1650LB)
SUITABLE FOR COILS WITH APPROX. OUTSIDE DIA. OF 850MM (33.5")
MODEL................................................................................ FOA-41
LENGTH OF SPRING BODY............................................... 1.5MM - 200MM
DRIVE................................................................................... 1/2HP, 208-230/460V, 3PH, 60 CYC, 1725RPM
METAL CONVEYOR 18" WIDE W/CLEATS ON 25-3/4" CENTERS
HOPPER 29" X 23"
PRICE: ON SITE, (TOLEDO, OH) .. . $24,500.00
