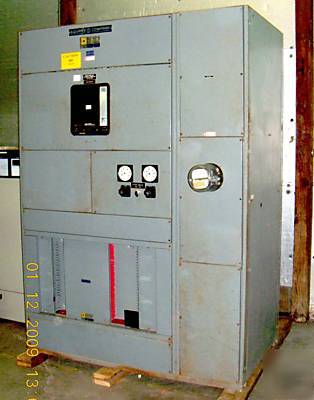

Square d panelboard panel 1200 amp 480 vac main breaker

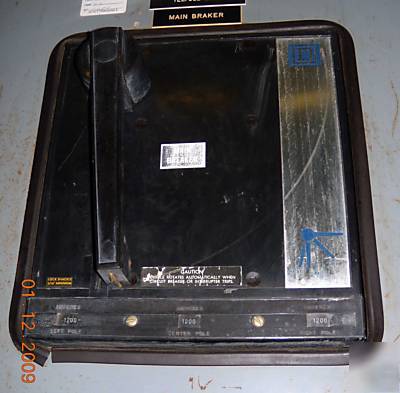

- Main Breaker Cat. # PAF361200
- 15 of these circuits will support "F" & "K" style I-Line frames. These circuit breakers range from 15 to 250 amps
- The other side also supports an additional 15 circuits, which will support "F", "K", "L", "M", & "N" style I-Line frames. These circuit breakers range from 15-1200 amps.
- Please keep in mind that the bigger frame circuit breakers take up more than 3 circuits each. The 3 pole FA or KA style will only take up 3 circuits each. LA models take up 5 circuits each,
and MA models use 6 circuits each.
* Panel is equipped with volt and amperes meters
* Any style of Square D I-Line circuit breaker from "F" style frames to "M" style frames. This includes the following model types:
