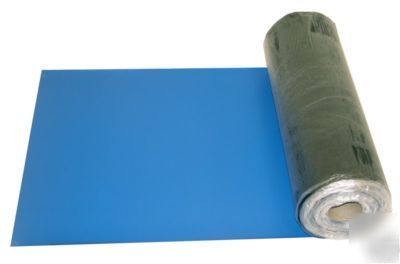

Rubber mat roll blue anti-static esd control 96302
Anti-Static Two-Layer Rubber Mat Material, 0.078 thick. Roll is 3ft x 50ft long. Color is dark blue. The top layer is Static Dissipative and the bottom layer is Conductive per the definition set by the ESD Association. This material meets ANSI/ESD S20.20 and ESD S4.1 recommendations. RTT: 10E6-10E8 Ohms. Smooth finish. Used as a floor or table mat in assembly or service areas to control ElectroStatic Discharge (ESD) when working with sensitive electronics. Highly resistant to hot soldering irons or solder splashes. Compatible with continuous wrist strap monitors. A polyethylene sheet is layered in the roll to protect the surface.
The roll may be cut into shorter pieces as needed. Snaps and ground cords are available. Manufacturer s item number 96302.
