Angle plate 4" x 3" x 3" vintage machinist toolmaker ez

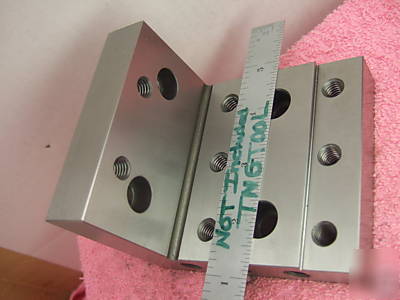

ANGLE PLATE OR ANGLE BLOCK USA AMERICAN TOOLMAKER MADE! FINISHED AND HEAT-TREATED. (1) PLATE THAT MEASURES FINISH GROUND AT 3.610" WIDE X 4.013" TALL X 2.975" TALL WITH (14) TOTAL TAPPED HOLES IN IT!!!! FINISH GROUND ON ALL SIDES AND PRECISION GROUND CHAMFERS ON INSIDE EDGES AS SHOWN. THERE ARE (2) HOLES 3/8" X 16 TAPPED HOLES IN SHORT FACE AND (2) DRILLED 3/8" AND COUNTER-BORED 19/32" PLUS (3) ON THE SIDE FOR A RAIL. OWNER NAME NEATLY STAMPED INTO TOOL PRIOR TO HEAT-TREAT AND GRIND.

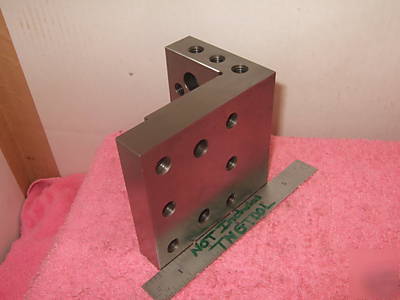

LONGER FACE ALSO HAS (6) 3/8" X 16 TAPPED HOLES ON FACE AND (2) DRILLED 3/8" AND 19/32" COUNTER-BORED HOLES . BLOCK ALSO HAS (3 PER SIDE OR 6 TOTAL) 3/8" X 16 TAPPED HOLES ON ITS SIDES.

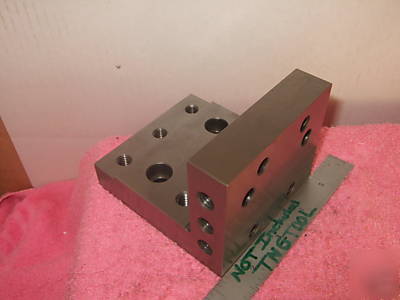

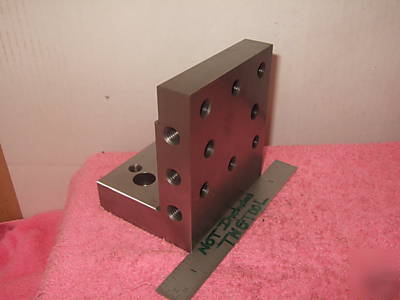

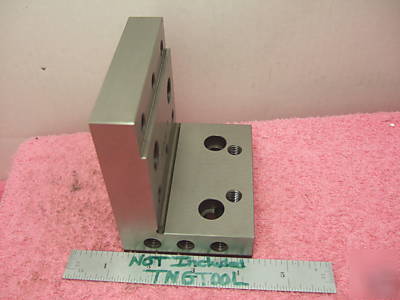

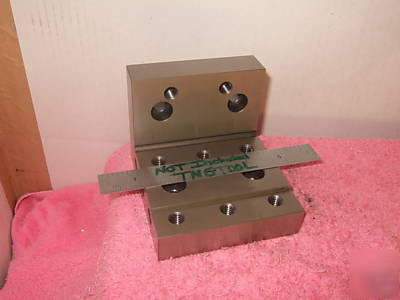

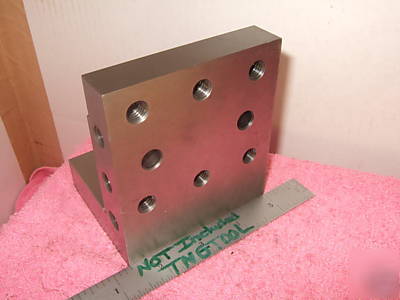

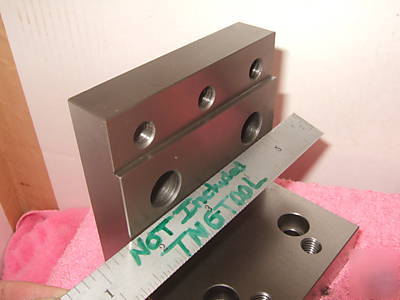

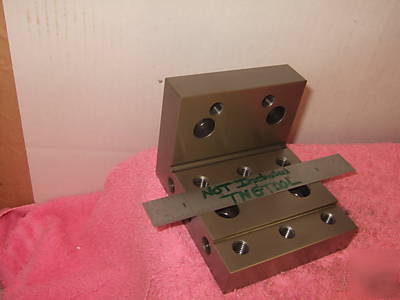

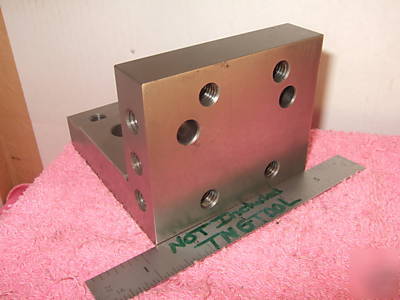

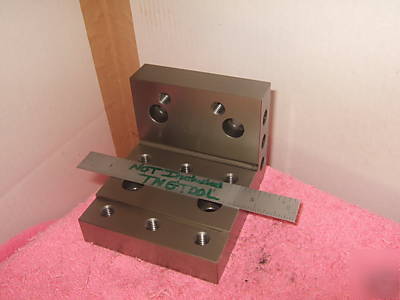

ANGLE PLATE OR ANGLE BLOCK IS IN EXCELLENT USED CONDITION WITH VERY MINOR MARKS AS SHOWN. ALL SIDES ARE SHOWN. OWNER TOLD US IT IS EITHER A-2 OR S-7 BUT HE COULD NOT REMEMBER WHICH. NO GRIND DMAGE OR DRILL OR MILL MARKS. PLEASE CHECK ALL THE SUPER-SIZE PICS AND ASK ANY QUESTIONS PLEASE. THANKS FOR LOOKING!
