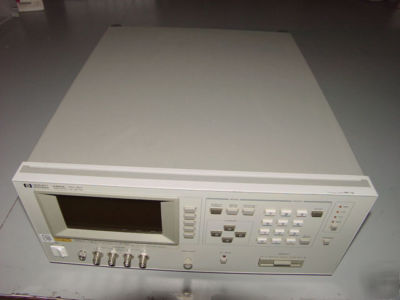

Agilent hp 4284A precision lcr meter 20HZ - 1MHZ 006
HP AGILENT 4284A PRECISION LCR METER 20HZ-1MHZ 006
The HP 4284A precision LCR meter is a cost-effective solution for component and material measurement. It can be used to improve component quality by providing an accurate, high throughput test solution. The wide 20Hz to 1MHz test frequency range and superior test signal performance allow the HP 4284A to test components to the most commonly used test standards, such as IEC/MIL standards, and under conditions that simulate the intended application. Whether in research and development, production, quality assurance, or incoming inspection, the HP4284A will meet all of your LCR meter test and measurement requirements.
* 20Hz to 1MHz, with over 8,600 test frequencies
* 0.05% basic accuracy, 6-digit resolution
* Test signal level (Option 001): 5mV to 20Vrms, 50uA to 200mA rms
* 10-bin component sorting-comparator
* Capacitance Range: 0.00001 pF - 9.99999 F
* Current Range: 50 uA - 20 mArms
* DC Bias/ HP-IB or Other: 0.01 nH - HP-IB
* Frequency Range: 20 Hz - 1 MHz
* Impedance Range: 0.01 mohm - 99.9999 Mo
* Inductance Range: 2 V - 99999.9 H
* Voltage Range: 5 mV - 2 Vrms
This unit has the following options installed:
* 006: 2m/4m Cable Length Operation
