> PICKIT2 pickit 2 starter kit for microchip
PICKIT2 pickit 2 starter kit for microchip
The PICkit 2 Development Programmer/Debugger (PG164120) is a low-cost development tool with an easy to use interface for programming and debugging Microchip s Flash families of microcontrollers. The full featured Windows programming interface supports baseline (PIC10F, PIC12F5xx, PIC16F5xx), midrange (PIC12F6xx, PIC16F), PIC18F, PIC24, dsPIC30, dsPIC33, and PIC32 families of 8-bit, 16-bit, and 32-bit microcontrollers, and many Microchip Serial EEPROM products. With Microchip s powerful MPLAB Integrated Development Environment (IDE) the PICkit 2 enables in-circuit debugging on most PIC microcontrollers. In-Circuit-Debugging runs, halts and single steps the program while the PIC microcontroller is embedded in the application. When halted at a breakpoint, the file registers can be examined and modified

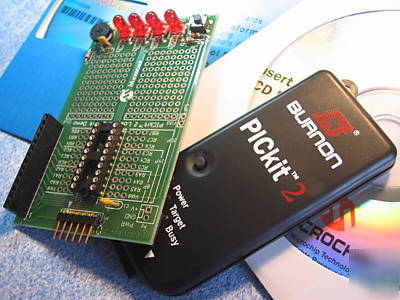

The PICkit 2 Starter Kit contains a PICkit 2 Microcontroller Programmer and a PICkit 2 Low Pin Count Demo Board containing a PIC16F690 PDIP for getting started with programming baseline and midrange flash microcontrollers. PICkit 2 takes advantage of Microchips Full-Speed USB device, thereby significantly speeding up development programming. The PICkit 2 Low Pin Count Demo Board supports 8-, 14-, and 20-pin PICmicros. In addition to the PIC16F690, the board comes with 4 LEDs, a pushbutton, and a pot. Also included are 12 lessons to help get developers up to speed quickly on programming PICmicro MCUs.
Features of PICkit 2 Starter Kit
* Low pin count demo board supporting 8/14/20-pin mid range PIC microcontrollers
* 20-pin PIC16F690 Midrange microcontroller
Note: Requires the AC162061 ICD Header and AC164110 adapter to debug.
* A series of 12 Lessons on assembly programming that cover I/O, A/D converters, timers, interrupts, and data tables (All source code files are provided)
* Getting Started in PICBASIC PRO tutorial on developing and debugging in BASIC with a FREE microEngineering Labs PICBASIC PRO Demo Compiler (contained on the PICkit 2 CD)
* HI-TECH PICC LITE C Compiler on PICkit 2 CD
* FREE! Microchip s MPLAB IDE software for a complete code development environment
