New ~brand laguna tools 28" horizontal bandsaw~

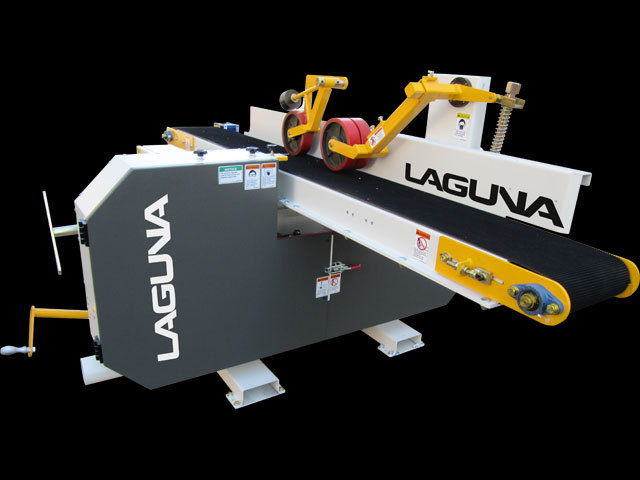

Laguna Tools 28" Horizontal Bandsaw
* Single Saw head configuration.
* Manual saw wheel elevation.
* Variable feed speed by 2HP electric motor through a right angle reduction gear.
* Manual Blade Tension Control.
* The blade tension is adjusted by turning the tensioning handle.
* Large handle design facilitates blade tension adjustment.
* Easy to Elevate Saw Wheels
* Manual elevation of saw wheels is transmitted through a worm gear mechanism for easy operation.
* Both elevation screws are linked by a shaft to ensure synchronized elevation of saw wheels.
* Max Workpiece size: 300 x 300 (12"x12")
* Distance from blade to conveyor table: 3-300mm
* Conveyor belt size: 285x5480 mm (11-5/5x215 3/4")
* Saw wheel diameter: 28" x 1"(W)
* Saw blade size (L x W x T): 4265 x 27 x 0.90mm (168" x 1")
* Electric variable feed speed motor 2HP
* Dust hood diameter: 4" x 2
* Frame: 2180 x 1140 x 1140 mm
* Conveyor: 2870 x 640 x 600 mm
