Davidson D616 adjustable plane reference mirror d-616
Davidson D616 Adjustable Plane Reference Mirror D-616

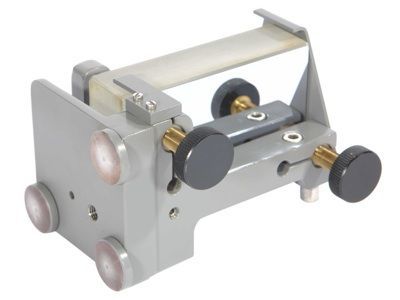

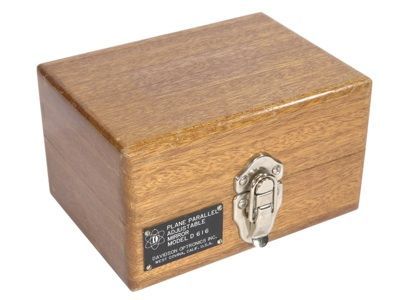

This is a Davidson Optronics model D-616 (S/N: 4771) plane parallel adjustable reference mirror in good working order with mahogany storage case and all original certificates of calibration and conformance. Unlike the D-615, this fused quartz mirror is polished on both sides to 1/4 fringe flatness and 1 arcsec parallelism, allowing setting of true right angles. Usable surfaces measure 1.75" by 2.75", and may be used with equal facility in both vertical and horizontal orientations.
Note that the retail price for this item is $3905.55
