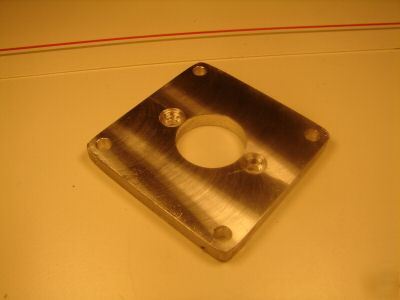

Cnc adapter plate for pittman motor to nema 23 aluminum
This will adapt your pittman motor to a nema 23 motor mount that is 2-1/4" square with a nema 23 bolt pattern, and a two bolt No 8 screw pittman motor with a 1-7/32" space between bolt holes. The bolt holse for the pittman are counter sunk for #8 flathead screws. The plate is 1/4" thick with a 7/8" center hole for a motor boss if needed, or shaft clearance if not needed.
