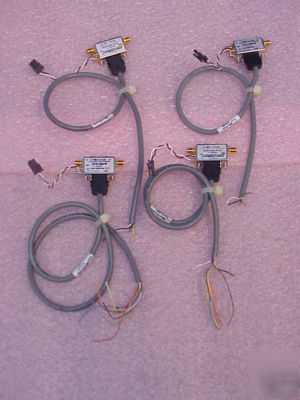

> 4 rf digital step attenuator dc-2.4GHZ sma 50ω
4 rf digital step attenuator dc-2.4GHZ sma 50ω
These come with gold SMA connections. They are in excellent condition and are current product.
31.5 dB in 0.5 dB Steps, 6 Bit, Parallel Control Interface, Single Supply Voltage
Removed from a working test fixture.
The ZX76-31R5-PP-S+ is a 50 Ohm RF digital step attenuator that offers an attenuation range
up to 31.5 dB in 0.5 dB steps. The control is a 6-bit parallel interface. The model operates on a
single +3 volt supply. The ZX76-31R5-PP-S+ is produced using a unique case package for
ruggedness and operation in tough environments.
Excellent return loss, 20 dB Typical
Excellent accuracy, 0.1 dB Typical
Control inputs buffered by Schmitt Triggers
Protected by US patent 6,790,049
