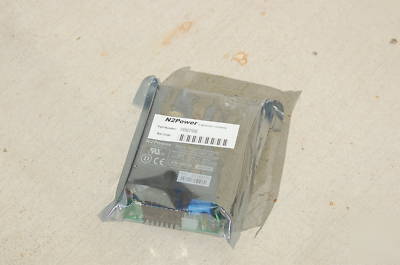

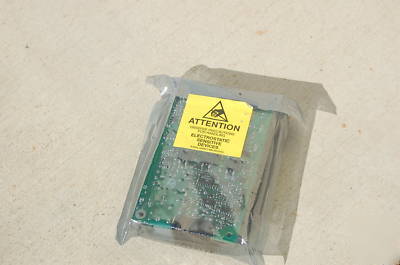

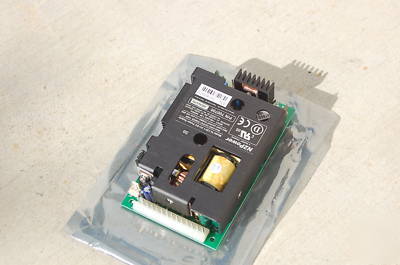

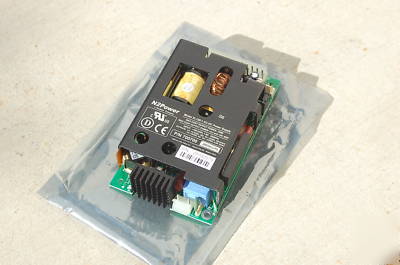

New -qualstar-N2POWER-XL125-1-ac-dc-power-supply 125W
Full Data Sheet ; NEW GURANTEED !! QTY 25 IN STOCK !
http://docs.google.com/viewer?a=v&q=cache:v5vl4X-WS30J: /700723.pdf+n2power+xl125-1+ac-dc+power+supply&hl=en&gl=us&pid=bl&srcid=ADGEEShXWs0hTU5W4u4j_tAJO3V1kUQhiuBIZ6v9WQ16Ci9g-Ujttkt9jC8bRo2RNkGVJ1bppSR4AGZ_2er7gWjj0hIpsDYhJc5JHfMwgr4i4Oev0yKHXFbQDcUJD5qz5wyPR9pkHQSB&sig=AHIEtbTgAoxQn8ERkwSOkIIZTYwOPbS_TA
This specification defines the XL125 series of ten open frame, single-phase (3 wire)
universal input, power factor corrected, 125-watt switch mode power supplies. It
includes information regarding the mechanical details, cooling requirements,
connector configurations, electrical and signal specifications, and environmental
ranges for storage and operation of the power supply. These supplies achieve very
high packaging densities and low cooling air requirements by virtue of their very high
efficiency patented design. Except for one model, they are all 3.0x5.0x1.25-inches
small. All of the XL125 family models are listed in Table 3-1.
The XL125-1 and XL125-1ATX are quad-output supplies. The XL125-1ATX adds a 5V,
1A standby supply that remains on, even when the four main outputs are shut-off
remotely. This model meets the output requirements of Intel ATX/ATX12V Power
Supply Design Guide (Version 2.03). Remote control is only available on the XL125-
All models of the XL125 Series can be used as standalone power supplies. Single-
output models XL125-03 through XL125-48 are available with internal OR-ing diodes
so that up to 4 power supplies may be connected in parallel for redundant or N+1
